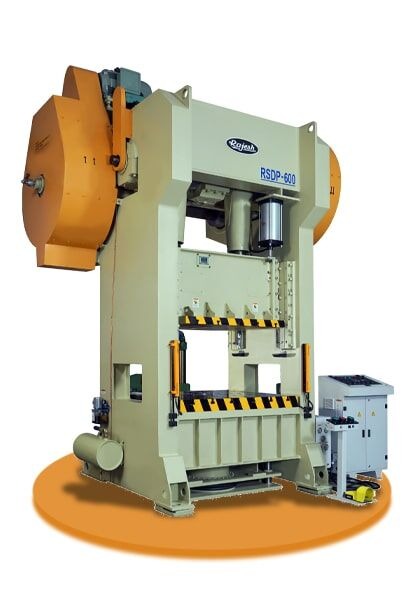

Single Crank Double Point Pneumatic Press
We manufacture high-quality Single Crank Double Point Pneumatic Press Machines for precise stamping, punching, bending, and forming operations. Designed for strength, stability, and accuracy, these machines deliver smooth performance, high productivity, and long service life, making them ideal for modern industrial manufacturing.
India’s Trusted Manufacturer of Pneumatic Power Press Machines
Industrial Single Crank Double Point Pneumatic Press for Heavy-Duty Manufacturing
A Single Crank Double Point Pneumatic Press is a mechanical press machine equipped with a single crankshaft and two drive points to distribute force evenly across the slide. This design provides excellent balance, reduced deflection, and uniform pressure during metal forming processes such as punching, blanking, bending, and stamping. The pneumatic clutch and brake system ensures smooth engagement, precise control, and enhanced operational safety, making it ideal for medium-duty to heavy-duty sheet metal applications.
Speed
Pneumatic clutch and optimized drive ensure fast, smooth, and controlled strokes for higher productivity.
Precision
Rigid frame and precise slide alignment reduce vibration and deliver consistent results.
Durability
Heavy-duty steel frame and hardened components ensure long-lasting, reliable performance.
Engineered for Precision, Stability, and Industrial Strength
Single Crank Double Point Pneumatic Press Design & Components
This Single Crank Double Point Pneumatic Press is built with robust construction, precision-aligned parts, and advanced mechanisms for smooth, reliable operation.
FRAME CONSTRUCTION
Single Crank Double Point Pneumatic Press fabricated from IS-2062 graded rolled steel plates. Frame is deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.
MOTORIZED SLIDE ADJUSTING DEVICE
The Motorized slide adjusting device is adopted with a thin brake motor and operated with push buttons. It provides stable positioning accuracy and quick adjustment.
TABLE & SLIDE (RAM)
Table and Slide are made of high grade heavy duty cast iron and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precession press operation.
FLYWHEEL
Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the cutting operations, and properly balanced for smooth running.
HIGH PRECISION TRANSMISSION GEAR
The high accurately machined gear system provides smooth and silent operation.
AUTO LUBRICATION SYSTEM
The auto lubrication system with default monitor ensures high reliable operation.
LONG HEXAGONAL GIBS
Durable alloy bronze lining fixed directly on the frame without the defect of losing adjusting bolts. Durable lining can also maintain high accuracy and extend the life of tooling.
DUAL SAFETY VALVE
The interlock mechanism on the dual valve keeps the clutch and brake from mis-actuation when valve is default.
DIE HEIGHT INDICATOR
Motorized slide adjusting devise fitted with 0.1 mm increment digital die height indicator.
HIGH QUALITY CRANK SHAFT
The strong crank shaft with outstanding rigidity ensures that accuracy can be maintained under qualified standard and extends the life of tooling.
HYDRAULIC OVERLOAD PROTECTOR
The Hydraulic overload protector is installed to prevent the overloading from exceeding the rating capacity tonnage and protect press and tooling from damage. The simple resetting process makes the restart operation easily.
PNEUMATIC DRY CLUTCH
The fail-safe, pneumatically operated clutch brake combination is designed to provide excellent slide motion control even at high speeds. Adequate energy required for blanking operation is ensured by optimised design of the flywheel.
Compare Performance Before You Invest
Technical Specifications of Single Crank Double Point Pneumatic Press
| MODEL NO. | RSDP-110 | RSDP-160 | RSDP-200 | RSDP-250 | RSDP-315 |
| Capacity | 110 Ton | 160 Ton | 200 Ton | 250 Ton | 315 Ton |
| Stroke Length (Fixed) | 120 | 160 | 200 | 250 | 250 |
| Stroke Per Minute (Fixed) | 40 | 30 | 30 | 25 | 25 |
| Stroke Per Minute (Variable) | 30-60 | 25-50 | 25-45 | 20-40 | 20-40 |
| Tonnage Rating Point | 3 | 3.5 | 3.5 | 4 | 4 |
| Die / Shut Height | 450 | 500 | 500 | 550 | 600 |
| Ram Adjustment | 80 | 90 | 90 | 100 | 125 |
| Ram Area | 1100x600 | 1400x700 | 1600x800 | 1900x900 | 2150x1150 |
| Floor to Top of Bolster | 900 | 900 | 900 | 1000 | 1000 |
| Area of Bolster (LR x FB) | 1250x750 | 1500x800 | 1700x900 | 2000x1000 | 2250x1250 |
| Thickness of Bolster | 100 | 120 | 120 | 150 | 150 |
| Main Motor | 10 HP | 15 HP | 20 HP | 25 HP | 30 HP |
| Slide Adjustment Motor (HP) | 0.75 | 1 | 1 | 1.5 | 2 |
| Die Cushion (Optional) | |||||
| Die Cushion Capacity | 8 x 2 = 16 Ton | 10 x 2 = 20 Ton | 14 x 2 = 28 Ton | 14 x 2 = 28 Ton | 14 x 2 = 28 Ton |
| Die Cushion Stroke Length | 90 | 100 | 110 | 120 | 140 |
| Pad Area | 540x340 | 640x440 | 740x540 | 740x540 | 840x640 |
More Productivity. Less Downtime. Better ROI.
Key Advantages of Single Crank Double Point Pneumatic Press
Our Single Crank Double Point Pneumatic Press Machines combine robust engineering with precision design to deliver reliable, high-performance operation in demanding production environments.
Balanced Force Distribution
The double-point drive distributes force evenly across the ram, reducing tilt and ensuring precise, accurate pressing.
Accurate Ram Guidance
Long hexagonal gibs with alloy bronze linings keep the ram aligned, improving accuracy and extending die/tool life.
High Structural Rigidity
The frame is heavily reinforced using high-grade steel, giving excellent stability and long-term durability.
Easy Slide Adjustment
Motorized slide adjustment with a die-height indicator (0.1 mm accuracy) allows quick and precise tool setup.
Smooth and Quiet Operation
Precision-machined transmission gears ensure smooth running with minimal vibration and noise.
Advanced Safety Features
Equipped with a pneumatic dry clutch, dual safety valve, anti-repeat device, and miss-feed detection for operator safety.
Standard Features & Optional Upgrades
Configured to Match Your Production Requirements
Rajesh Single Crank Double Point Pneumatic Press Machines are engineered to meet the strict demands of modern metal forming processes. Built with a strong double-point drive structure, these machines provide superior load distribution, enhanced tool alignment, and improved die life. Each press is designed to deliver stable performance, enhanced safety, and long-term durability, making it an ideal choice for manufacturing units focused on productivity, accuracy, and operational efficiency.
Standard Equipment
- Pneumatic Clutch
- PLC Control With Fault Finding System
- Motorized Slide Adj.
- Knock Out System
- Die Height Indicator
- Counter Balancer of Slide
- Anti-repeat Safety Device
- Air Outlet / Miss-Feed Detector Socket
- Imported Reputed Make FRL & Pneumatic Fitting
- Imported Reputed Make Make Dual Solenoid Valve
- Rotary Cam Limit Switch
- Electric Control Panel and Production Counter
- Operation & Maintenance Manual
Optional Equipment
- Pneumatic Die Cushion
- Variable Speed Drive
- Photo Safety Curtains
- Anti-Vibration Mount
Quality Assurance Through
Our Certificates
Why Choose Rajesh Single Crank Double Point Pneumatic Press Machines
Rajesh Single Crank Double Point Pneumatic Press Machines deliver powerful, balanced, and highly precise performance for heavy-duty stamping, forming, blanking, and sheet metal operations. The double point mechanism distributes load evenly across the slide, minimizing deflection and ensuring accurate results even in high-tonnage applications. This design makes the machine ideal for large dies, continuous production, and precision-driven manufacturing environments.
Each press is manufactured using premium-grade steel, precision-machined components, and advanced assembly standards to guarantee structural rigidity, vibration control, and long operational life. The strong frame construction enhances stability during operation, improves tooling accuracy, and maintains consistent output quality while reducing wear and maintenance demands.
Rajesh Single Crank Double Point Pneumatic Press Machines are designed to match diverse industrial requirements with customizable stroke length, tonnage capacity, automation compatibility, and safety systems. Supported by reliable service assistance and authentic spare parts, these machines help manufacturers achieve higher productivity, safer operations, and dependable performance across demanding production cycles.
Let’s Build Your Production Power
Get in Touch with Our Experts
People Also Ask
Frequently Asked Questions
These presses are widely used in automotive, sheet-metal fabrication, appliance manufacturing, electrical components, and heavy engineering industries where large dies and precise forming operations are required.
A double point press distributes force evenly across two points, reducing slide deflection and improving accuracy. This makes it better suited for wide dies, large sheets, and precision parts compared to single-point presses.
Key factors include tonnage capacity, bed size, stroke length, automation compatibility, safety systems, production volume, and available floor space. Matching these specs to your application ensures optimal performance and efficiency.
Yes, most models can be configured with different tonnage ranges, stroke adjustments, control systems, safety features, and automation integrations to suit particular tooling and production needs.
Pneumatic presses provide faster cycle speeds, smoother operation, and consistent pressure control. This reduces manual effort, increases output rate, improves part consistency, and minimizes operator fatigue.
