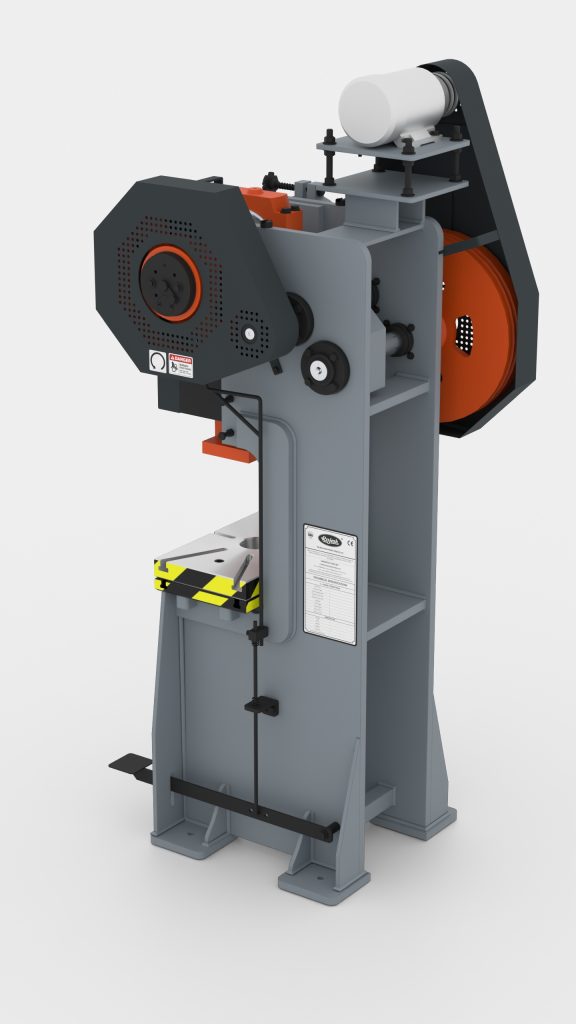

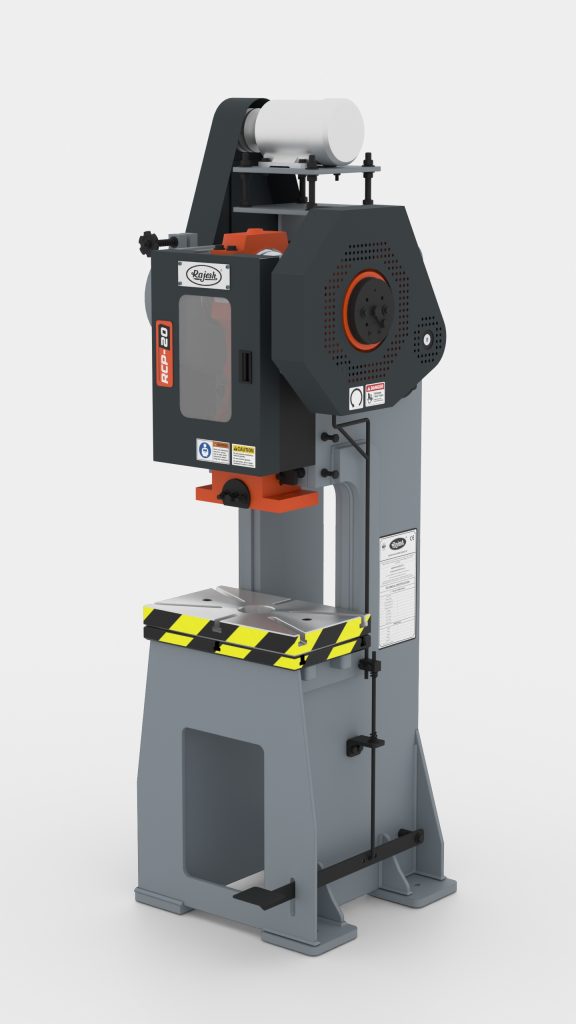

The RCP-20T C-Frame Power Press offers robust tonnage and exceptional precision, ideal for medium to heavy industrial tasks. It provides consistent performance for high-precision metal forming, bending, and punching applications, ensuring quality and reliability in demanding environments.
20 Ton – perfect for medium-duty industrial applications
Adjustable stroke and deep-throat design for maximum accuracy
Rugged construction for extended operational life
Energy-efficient with quiet operation
Built-in operational safety features
| Specification | Details |
|---|---|
| Model No. | RCP-20T |
| Tonnage | 20 Ton |
| Crank Shaft Diameter | 70 mm |
| Stroke Length | 60 mm |
| Stroke Adjustment | 20 – 60 mm |
| Bed Size | 400 × 250 mm |
| Specification | Details |
|---|---|
| Distance Bed to Ram | 250 mm |
| Hole in Ram | 40 mm |
| Hole in Bed | 100 mm |
| Flywheel Diameter | 500 mm |
| Motor H.P. Required | 5 HP |
| Dimensions (L×W×H) | 1050 × 950 × 1600 mm |
For a hassle-free purchase, get in touch with Rajesh Machine Tools to secure factory-direct pricing and on-time delivery.
Contact us for The best quote as per your specific production requirements. Our team is ready to provide detailed pricing and delivery schedules.
