Hydraulic Workshop Press
We manufacture high-quality Hydraulic Workshop Press Machines to ensure precise pressing, forming, straightening, and assembly operations. With a strong focus on power, control, and safety, our machines deliver smooth operation and consistent output. Robust engineering and customizable configurations meet the demands of modern workshops and industrial applications.
India’s Trusted Manufacturer of Workshop Press Machines
Industrial Hydraulic Workshop Press for Modern Workshops
A Hydraulic Workshop Press is a heavy-duty press machine designed with a rigid frame and a high-performance hydraulic system that provides controlled and uniform force. It is widely used for operations such as bearing fitting and removal, bushing installation, straightening shafts, gear pressing, and general maintenance tasks. The hydraulic design allows precise pressure control, making it ideal for light-duty to heavy-duty workshop applications.
Speed
High-efficiency hydraulic system delivers strong, smooth, and controlled pressing force for reliable and repeatable performance.
Precision
Advanced pressure control mechanism ensures accurate force application, reducing material damage and improving work quality.
Durability
Heavy-duty frame construction and premium hydraulic components ensure long service life and dependable operation under continuous use.
Crafted for Strength & Consistent Performance
Hydraulic Workshop Press Design & Components
Designed with robust construction, precision components, and user-focused features, this Hydraulic Workshop Press delivers dependable performance for pressing, straightening, and assembly applications in professional workshop environments.
FRAME CONSTRUCTION
Frame is fabricated from IS-2062 graded rolled steel plates table and cutting beam are deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.
HYDRAULIC SYSTEM
The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates. Pressure relief value is provided to safe guard the system and Machine from overload. The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.
CYLINDER
The cylinder bodies are precisely made from forged steel material duly bored and fine honed for long sealing life. The piston rods are made From EN – 8 material having low carbon contents. The piston rod is hard chrome platted (0.200 micron).
ELECTRICAL CONTROL PANEL
The electrical control panel is located on the left hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if need to be replaced. It is wire cleanly and labeled/ferruled properly as per the international practices to help easily locates any fault and replaces components conveniently.
Evaluate Performance Before You Decide
Technical Specifications of Hydraulic Workshop Press
| MODEL NO. | Ton | Distance Between Two Column | Bed to Ram | Stroke Hand Operated | Stroke Power Operated | HP | Rod Size |
| RDPM - 15 | 15 | 750×200 | 125 | 100 | 200 | 2 | 55 |
| RDPM-25 | 25 | 800×250 | 150 | 125 | 200 | 2 | 65 |
| RDPM - 40 | 40 | 950×350 | 175 | 150 | 250 | 2 | 85 |
| RDPM - 60 | 60 | 1000×400 | 175 | 150 | 250 | 3 | 100 |
| RDPM - 80 | 80 | 1100×450 | 175 | 150 | 300 | 3 | 105 |
| RDPM - 100 | 100 | 1200×600 | 175 | 150 | 300 | 3 | 125 |
| RDPM - 150 | 150 | 1250×600 | 200 | 350 | 5 | 150 | |
| RDPM - 200 | 200 | 1300×600 | 200 | 350 | 5 | 200 | |
| RDPM - 250 | 250 | 1300×650 | 200 | 400 | 7.5 | 200 | |
Higher Efficiency. Reduced Delays. Greater Value.
Key Advantages of Hydraulic Workshop Press
Our Single Crank Double Point Pneumatic Press Machines combine robust engineering with precision design to deliver reliable, high-performance operation in demanding production environments.
Heavy-Duty Frame for Workshop Use
The press is built with a robust welded steel frame that handles constant workshop operations like straightening, bending, and press-fitting without deformation.
Ideal for Repair, Maintenance & Fabrication
Designed for daily shop use, it supports a wide variety of pressing operations typically done in maintenance, automotive, and fabrication workshops.
Smooth and Controlled Hydraulic Pressure
Hydraulic force allows precise and gradual pressure build-up, making delicate tasks like bearing insertion or straightening safer and more accurate.
Easy Hand or Motorized Pump Operation

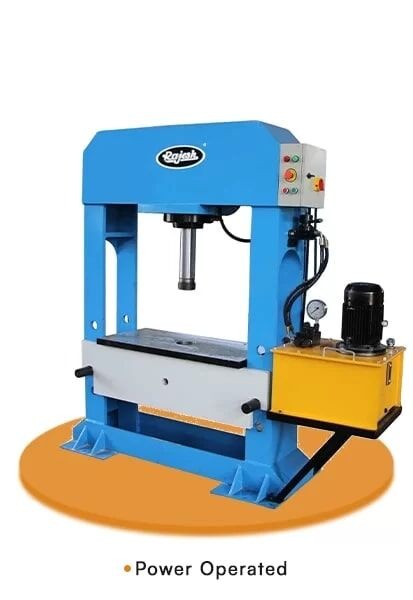

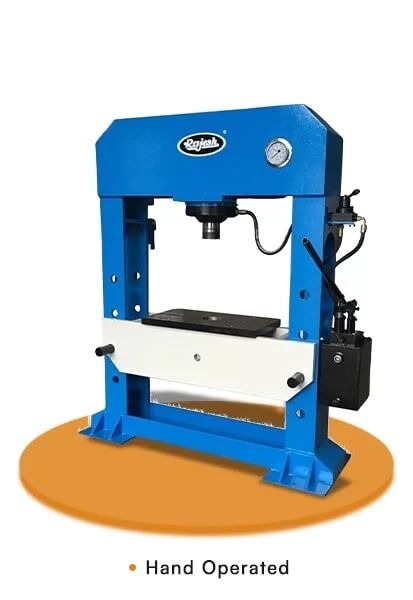

Depending on the model, operators can choose simple hand-pump control or faster motorized hydraulic action for repetitive tasks.
Adjustable Working Table
The multi-position bed/table can be raised or lowered depending on the job, making it suitable for small components as well as long shafts and larger assemblies.
High Precision Press-Fitting
Provides excellent control for fitting bushes, pulleys, bearings, pins, gears, and other mechanical parts without causing damage.
Standard Features & Optional Upgrades
Configured to Match Your Production Requirements
Rajesh Hydraulic Workshop Press Machines are developed precisely to meet the demanding requirements of modern workshops and industrial maintenance processes. Built with a robust frame and efficient hydraulic system, these machines provide excellent stability, precise force transmission, and safe operation for pressing, forming, and straightening tasks.
Each machine is carefully designed to ensure steady performance, enhanced safety features, and long-lasting endurance, making it an ideal solution for workshops and manufacturing units focused on productivity, reliability, and quality output.
Standard Equipment
- Front Operator Control Box
- Operation & Maintenance Manual
Optional Equipment
- Die and Punch Tooling
- Anti-vibration mount
- Base Plate
From Light-Duty to Heavy-Duty Applications
C-Frame Power Press Machines by Tonnage Capacity
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
Quality Assurance Through
Our Certificates
Why Choose Hydraulic Workshop Press Machines
Hydraulic Workshop Press Machine delivers dependable force and accuracy for pressing, straightening, assembling, and maintenance applications. Their sturdy frame design ensures excellent stability, precise pressure control, and smooth operation, making them well-suited for high-demand workshops and industrial service environments.
Each machine is produced using premium-grade steel and precisely machined components to provide durability, structural integrity, and long operational life. The solid construction minimizes vibration, improves working accuracy, and keeps maintenance requirements low even during continuous heavy-duty use.
Manufactured by Rajesh Power Press India, these presses can be customized with different capacities, table sizes, stroke settings, and safety features to match specific application needs. With dependable after-sales support and genuine spare parts availability, they help ensure consistent productivity, operator safety, and long-term performance.
Let’s Build Your Production Power
Get in Touch with Our Experts
People Also Ask
Frequently Asked Questions
A hydraulic workshop press is used for operations such as pressing, straightening, bending, assembling, removing bearings, and metal forming. It is widely used in automotive workshops, maintenance units, and fabrication industries where controlled force is required.
The right capacity depends on your application. Light repair work may require 10–20 tons, while heavy industrial tasks may need 50 tons or more. Selecting the correct tonnage ensures efficiency, safety, and longer machine life.
It operates using hydraulic pressure generated by a pump that pushes fluid into a cylinder. This pressure moves a ram downward with controlled force, allowing precise pressing and forming operations.
Important safety features include pressure gauges, overload protection, stable frame construction, adjustable working tables, and secure locking systems. These features protect both the operator and the machine during use.
Yes, many presses can be tailored with different bed sizes, stroke lengths, tonnage capacities, and optional accessories. Rajesh Power Press India offers customization options to match specific workshop and industrial requirements.
Regular maintenance includes checking hydraulic oil levels, inspecting seals and hoses, lubricating moving parts, tightening bolts, and keeping the machine clean. Routine servicing ensures consistent performance and prevents unexpected downtime.
