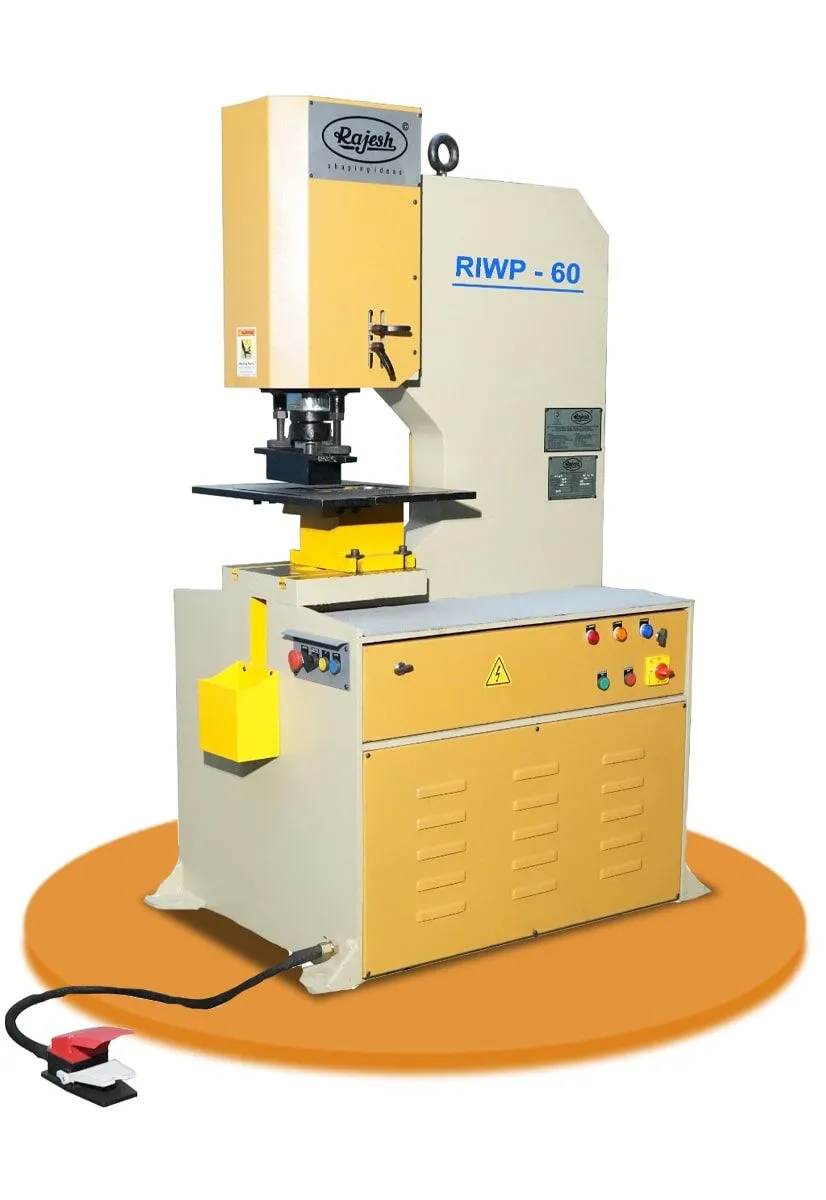

Hydraulic Punching Machine
We manufacture high‑quality Hydraulic Punching Machines to ensure precise, clean, and efficient punching of sheet metal and plates. With a strong focus on power, accuracy, and reliability, our machines deliver smooth performance and high productivity. Robust engineering and customizable configurations meet the demands of modern fabrication, manufacturing, and industrial workshop applications.
India’s Trusted Manufacturer of Punching Machines
Industrial Hydraulic Punching Machine for Modern Fabrication
Rajesh Machine is a leading manufacturer of hydraulic punching machines in India. Hydraulic punching machines are known for their precision, reliability, and durability. Our metal hole punch machines are ideal for punching holes in sheets of different thicknesses and sizes. punch press machines are perfect for a variety of industries, including construction, automotive, and aerospace.
At Rajesh Machines, we are committed to delivering the best hydraulic punching machines and hydraulic punches to our customers. We are a well-liked option among our consumers because of our hydraulic punching machine price. If you are looking for a hydraulic punching machine for sheet metal, look no further than our range of products. Contact us today to learn more about our products and services, and how we can help you with your sheet metal punching machine needs.
Power
High‑efficiency hydraulic system delivers strong and consistent punching force for reliable and repeatable performance.
Precision
Advanced hydraulic control and robust punch guidance ensure accurate hole formation and minimal distortion.
Durability
Heavy‑duty frame and premium hydraulic components ensure long service life and dependable operation under continuous use.
Engineered for Accuracy. Built for Strength.
Hydraulic Punching Machine Design & Components
The Hydraulic Punching Machine is built with precision-machined parts, a rigid stress-relieved frame, and high-quality steel components to ensure stable performance, precise punching results, and reliable operation in demanding industrial applications.
FRAME CONTRACTION
Frame is fabricated from IS-2062 graded rolled steel plates table and cutting beam deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. These frames are strain free and eliminate welds at load supports. Thus the accuracy of the machine is never disturbed.

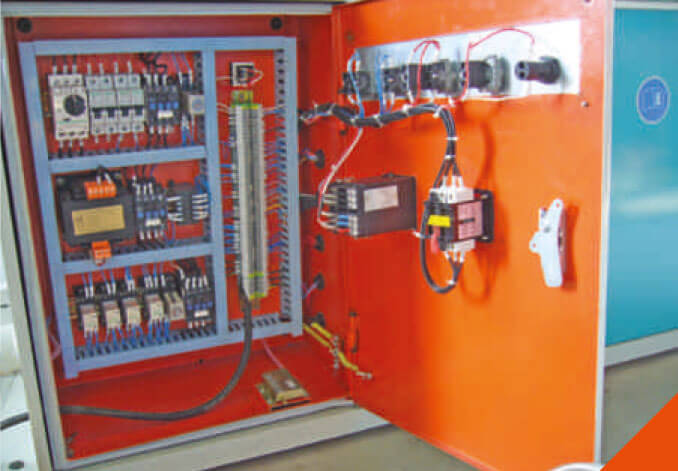

ELECTRICAL CONTROL PANEL
The electrical control panel is located on the left hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if need to be replaced. It is wire cleanly and labeled/ferruled properly as per the international practices to help easily locates any fault and replaces components conveniently.
CYLINDER
The cylinder bodies are precisely made from forged steel material duly bored and fine honed or long sealing life. The piston rods are made from EN-8 material having low carbon contents. The piston rod is hard chrome platted (0.200 micron).
HYDRAULIC SYSTEM
The compact blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low noise hydraulic system is placed on the rear side of machine, on the rear side of machine, on top between two side plates. Pressure relief values is provided to safe guard the system and punching press machine from overload. The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable if generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.
Assess Capability Before You Decide
Technical Specifications of Hydraulic Punching
| MODEL NO. | RIWP-40 | RIWP-50 | RIWP-60 | RIWP-75 | RIWP-90 | RIWP-120 | RIWP-150 | RIWP-175 |
| Tonnage | 40 Ton | 50 Ton | 60 Ton | 75 Ton | 90 Ton | 120 Ton | 150 Ton | 175 Ton |
| Punch Capacity (Diameter x Thickness) Material Strength Of 450 N/MM' | ø 18 x 14 | ø 20 x 15 | ø 20 x 16 | ø 22 x 20 | ø 26 x 22 | ø 26 x 26 | ø 33 x 27 | ø 40 x 30 |
| ø 25 x 8 | ø 35 x 8 | ø 45 x 8 | ø 50 x 9 | ø 50 x 12 | ø 50 x 15 | ø 50 x 18 | ø 34 x 34 | |
| Throat Depth | 175 | 175 | 275 | 310 | 310 | 310 | 570 | 510 |
| Maximum Stock Length | 60 | 60 | 100 | 100 | 100 | 100 | 100 | 100 |
| Stroke/Min. (20mm Stroke Length) | 30 | 30 | 25-32 | 20-25 | 20-25 | 21 | 20 | 31 |
| Motor HP | 5 | 5 | 5/7.5 | 7.5 | 10 | 10 | 15 | 20 |
| Working Height Up to Die | 910 | 910 | 910 | 910 | 950 | 950 | 1020 | 1110 |
Higher Output. Minimal Interruptions. Maximum Value.
Key Advantages of Hydraulic Punching Machine
Our Hydraulic Punching machine combine robust engineering with precision design to deliver reliable, high-performance operation in demanding production environments.
Powerful and Consistent Punching Force
The hydraulic drive delivers smooth, strong force for precise hole punching with minimal distortion. Ensures reliable performance across various materials and thicknesses.
High Productivity
Fast and smooth hydraulic punching action increases output and reduces processing time. Ideal for continuous use in production environments.
Accurate and Clean Punching
Precision‑engineered punch assembly provides consistent hole quality and clean edges. Reduces the need for secondary finishing work.
Versatile Material Capability
Suitable for mild steel, stainless steel, aluminium, and other sheet metals with dependable performance. Maintains consistent punching quality across different metals.
Adjustable Punching Settings
Adjustable pressure and stroke allow optimization for different material types and thicknesses. Enhances versatility for varied fabrication requirements.
User‑Friendly Operation
Simple and intuitive controls allow easy setup and efficient machine operation. Improves workflow and reduces operator fatigue.
Standard Features & Optional Upgrades
Configured to Match Your Production Requirements
Rajesh Hydraulic Punching Machines are developed precisely to meet the rigorous requirements of modern metal fabrication and industrial production processes. Built with a strong and stable frame, efficient hydraulic system, and precision punch assembly, these machines provide excellent stability, reliable performance, and smooth operation.
Each machine is specifically designed to ensure steady performance, enhanced safety features, and long‐lasting endurance — making it an ideal solution for workshops and manufacturing units focused on productivity, quality, and reliable output.
Standard Equipment
- Variable Stroke Adjustment With Limit Switch

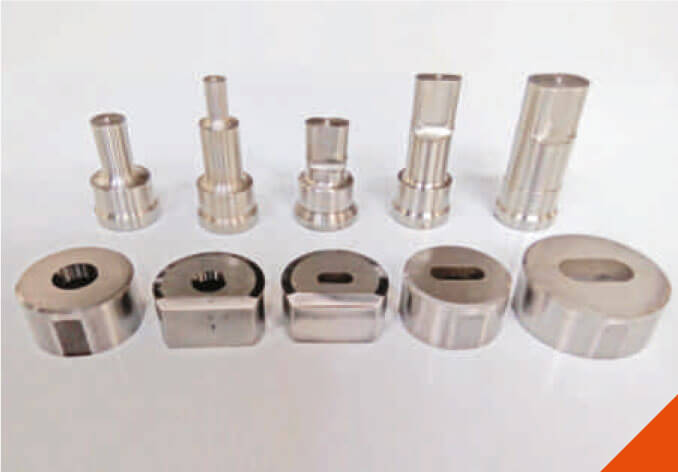

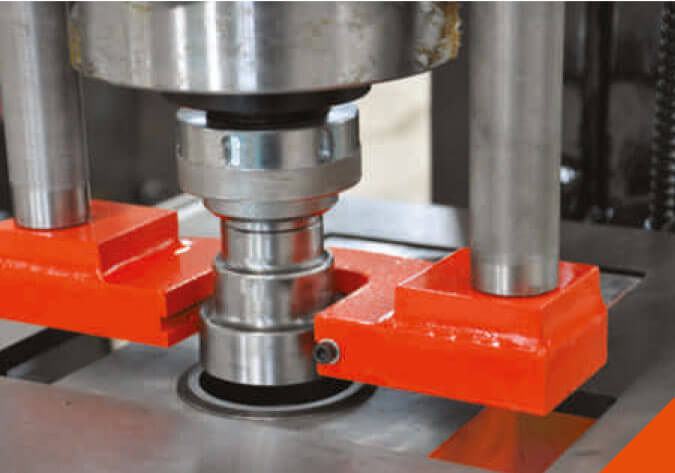

- Punch and Die – 10 Set (Diameter between 8 mm to 20 mm)

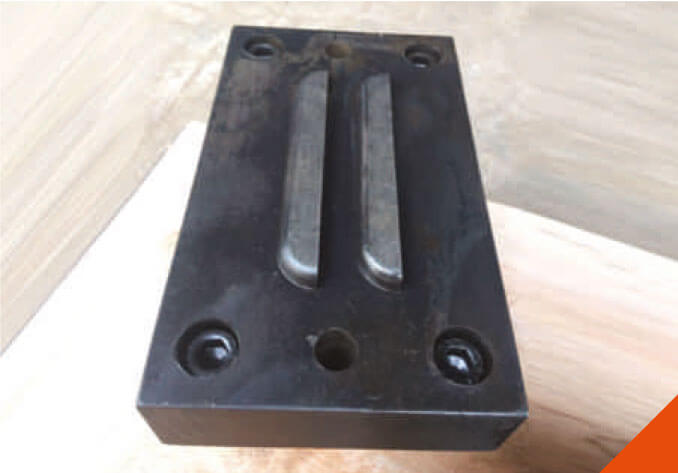

- Quick Change Die Holder 3 in 1 – 50, 73 & Angle
- Punching
- Die Light
- Operating Mode (Inching/Auto)
- Emergency Stop Switch
- Movable Foot Switch
- Table for Punch Station
- Operation & Maintenance Manual Book
Optional Equipment
- Hydraulic Hold-Down
- Customized Die
- NC Gauge
Quality Assurance Through
Our Certificates
Why Choose Rajesh Hydraulic Punching Machine
Rajesh Hydraulic Punching Machines provide reliable and high-performance solutions for punching, slotting, and notching operations across diverse sheet metal applications. Engineered for precision and efficiency, these machines deliver clean, accurate holes with consistent force distribution. The rigid and robust frame design ensures excellent stability, smooth operation, and superior control, making them suitable for high-productivity workshops and demanding industrial manufacturing units.
Each hydraulic punching machine is built using high-grade steel and precision-engineered hydraulic components to ensure strength, durability, and long operational life. The advanced hydraulic system maintains uniform pressure throughout the stroke, reducing material distortion and improving punching accuracy. Its sturdy construction minimizes vibration, enhances tooling life, and keeps maintenance requirements low, even under continuous industrial usage.
Rajesh Hydraulic Punching Machines can be customized with different tonnage capacities, stroke adjustments, throat depths, and integrated safety features to meet specific production requirements. Automation options and user-friendly controls further enhance efficiency and operator safety. Supported by dependable after-sales service and genuine spare parts, our machines help ensure consistent performance, improved productivity, and long-term manufacturing reliability.
Let’s Build Your Production Power
Get in Touch with Our Experts
People Also Ask
Frequently Asked Questions
The Hydraulic Punching machine is designed to punch holes in a wide range of sheet metal thicknesses across various materials. It comes with a standard set of punch and die sets for common hole diameters and allows customization of dies to suit specific hole sizes and shapes needed for your application.
Standard features include variable stroke adjustment with limit switch, multiple punch and die sets, quick‑change die holder options, a movable foot switch, emergency stop switch, and a dedicated table for the punch station, enabling safer and more efficient operation.
Yes. In addition to standard tooling, you can opt for customized dies and additional features like hydraulic hold‑down or NC gauges to match unique production requirements, helping you punch different hole shapes and sizes as needed.
