Hydraulic NC Press Brake
India’s Trusted Manufacturer of Press Brake Machines
Industrial Hydraulic NC Press Brake for Modern Production

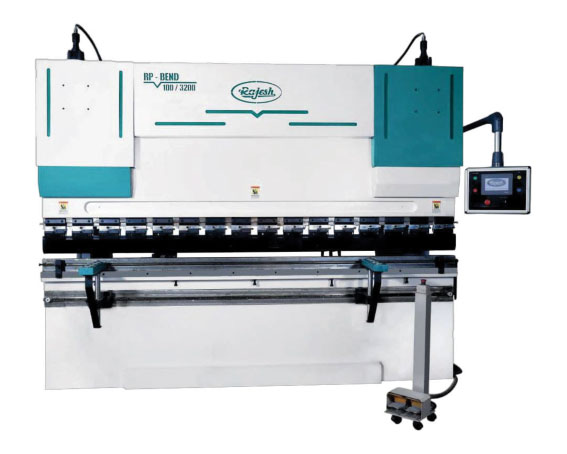

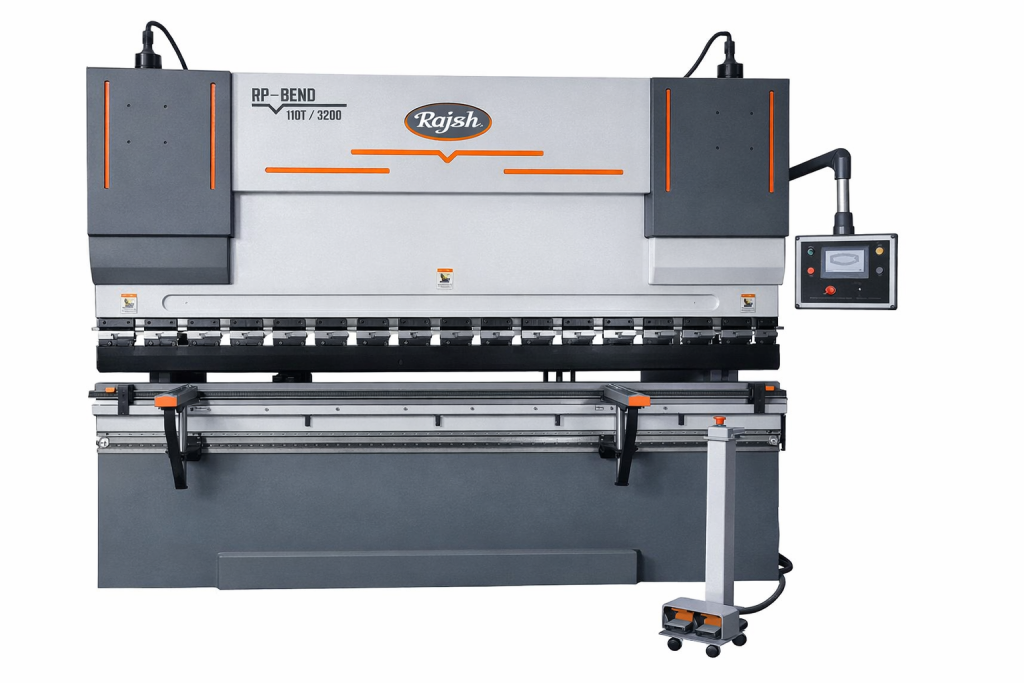

A Hydraulic NC Press Brake is a computer-controlled bending machine that uses hydraulic power and numeric control (NC) for accurate sheet metal bending to programmed angles and profiles. Ideal for repetitive bending tasks with high precision, it offers enhanced control over force, speed, and angle consistency. The NC system allows operators to program work steps and achieve uniform results, making it suitable for light to heavy-duty sheet metal fabrication.
Speed
High-performance hydraulic system delivers strong, smooth, and controllable force for efficient bending operations.
Precision
Numeric Control (NC) ensures repeatable accuracy and consistent bend angles across multiple workpieces.
Durability
Heavy-duty frame and premium hydraulic components ensure long service life and dependable performance under continuous use.
Precision Engineering. Reliable Output.
Hydraulic NC Press Brake Design & Core Components
The Hydraulic NC Press Brake is built with a rigid frame, advanced hydraulic system, and user-friendly controls to deliver accurate bending, steady operation, and consistent performance for industrial sheet metal applications.
FRAME CONSTRUCTION
Frame is fabricated from IS-2062 graded rolled steel plates table and cutting beam deeply reinforced and fines machines after stress relieving. The interlocked design put the direct support to the frame. These frames are strain-free and eliminate welds at load supports. Thus the accuracy of the machine is never disturbed.
HYDRAULIC SYSTEM
The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates. Pressure relief value is provided to safe guard the system and Machine from overload. The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.
TABLE & SLIDE (RAM)
Table and Slide are made of high grade heavy duty cast iron / steel fabricated and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precession press operation.
ELECTRICAL CONTROL PANEL
The electric control panel is located on the left hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if needed to be replaced. It is wired cleanly and labelled/ferruled properly as per the international practices to help easily locate any fault and replace components conveniently..
CYLINDER
The cylinder bodies are precisely made from forged steel material duly bored and fine honed for long sealing life. The piston rods are made From EN – 8 material having low carbon contents. The piston rod is hard chrome platted (0.200 micron).
Advanced Control. Consistent Bending Accuracy.
Technical Specifications of Hydraulic NC Press Brake
| MODEL NO. | Bending Capacity | Bending Length | Distance Between column | Depth of Throat | Slide Stroke | Stroke Adjustment | Shut Height | Stroke Per Minute | Main Motor Power | Net Weight | Packing Dimension (Length x width x Height) |
| RP-Bend NC 40T/1600 | 40 | 1600 | 1250 | 230 | 100 | 80 | 320 | ≥ 11 | 5.5 | 3000 | 2100 x 1250 x 2050 |
| RP-Bend NC 40T/2500 | 40 | 2500 | 1850 | 230 | 100 | 80 | 320 | ≥ 11 | 5.5 | 3000 | 2500 x 1200 x 1910 |
| RP-Bend NC 50T/2500 | 50 | 2500 | 2000 | 230 | 100 | 80 | 320 | ≥ 11 | 5.5 | 3600 | 3150 x 1350 x 2240 |
| RP-Bend NC 63T/2500 | 63 | 2500 | 1900 | 250 | 100 | 80 | 320 | ≥ 10 | 5.5 | 4100 | 2850 x 1890 x 2150 |
| RP-Bend NC 63T/3200 | 63 | 3200 | 2560 | 250 | 100 | 80 | 320 | ≥ 10 | 5.5 | 4800 | 3200 x 1300x 2210 |
| RP-Bend NC 80T/2500 | 80 | 2500 | 1900 | 320 | 100 | 80 | 360 | ≥ 10 | 7.5 | 4800 | 3180 x 1750 x 2350 |
| RP-Bend NC 80T/3200 | 80 | 3200 | 2600 | 320 | 100 | 80 | 360 | ≥ 10 | 7.5 | 5580 | 3820 x 1700 x 2350 |
| RP-Bend NC 80T/4000 | 80 | 4000 | 3350 | 320 | 100 | 80 | 360 | ≥ 10 | 7.5 | 6120 | 4350 x 1700 x 2400 |
| RP-Bend NC 100T/2500 | 100 | 2500 | 1850 | 320 | 120 | 100 | 390 | ≥ 10 | 7.5 | 5850 | 2850 x 1750 x 2360 |
| RP-Bend NC 100T/3200 | 100 | 3200 | 2550 | 320 | 120 | 100 | 390 | ≥ 10 | 7.5 | 6500 | 3790 x 1700 x 2350 |
| RP-Bend NC 100T/4000 | 100 | 4000 | 3350 | 320 | 120 | 100 | 390 | ≥ 10 | 7.5 | 7800 | 4590 x 1745 x 2450 |
| RP-Bend NC 125T/2500 | 125 | 2500 | 1850 | 320 | 130 | 130 | 390 | ≥ 10 | 11 | 6100 | 3190 x 1945 x 2420 |
| RP-Bend NC 125T/3200 | 125 | 3200 | 2550 | 320 | 130 | 130 | 390 | ≥ 10 | 11 | 7300 | 3790 x 1935 x 2420 |
| RP-Bend NC 125T/4000 | 125 | 4000 | 3000 | 320 | 120/150 | 130 | 370/400 | ≥ 10 | 11 | 8800 | 4000 x 1600 x 2700 |
| RP-Bend NC 160T/2500 | 160 | 2500 | 1950 | 330 | 200 | 200 | 465 | ≥ 6 | 11 | 8900 | 3300 x 2225 x 2560 |
| RP-Bend NC 160T/3200 | 160 | 3200 | 2540 | 330 | 200 | 200 | 465 | ≥ 6 | 11 | 9720 | 4100 x 2250 x 2560 |
| RP-Bend NC 160T/4000 | 160 | 4000 | 3140 | 330 | 200 | 200 | 465 | ≥ 6 | 11 | 11160 | 4800 x 2250 x 2560 |
| RP-Bend NC 160T/5000 | 160 | 5000 | 4000 | 320 | 200 | 200 | 460 | ≥ 6 | 11 | 14000 | 5000 x 1900 x 3100 |
| RP-Bend NC 160T/6000 | 160 | 6000 | 4800 | 330 | 200 | 200 | 465 | ≥ 6 | 11 | 18600 | 6400 x 2250 x 2960 |
| RP-Bend NC 200T/2500 | 200 | 2500 | 2050 | 320 | 200 | 200 | 460 | ≥ 3 | 15 | 10250 | 2650 x 1900 x 3200 |
| RP-Bend NC 200T/3200 | 200 | 3200 | 2550 | 350 | 230 | 200 | 515 | ≥ 3 | 15 | 12500 | 3750 x 2180 x 2950 |
| RP-Bend NC 200T/4000 | 200 | 4000 | 3260 | 350 | 200 | 200 | 515 | ≥ 3 | 15 | 14300 | 4450 x 2180 x 3000 |
| RP-Bend NC 200T/5000 | 200 | 5000 | 4000 | 320 | 200 | 200 | 460 | ≥ 3 | 15 | 14500 | 5000 x 1950 x 3100 |
| RP-Bend NC 200T/6000 | 200 | 6000 | 4800 | 350 | 200 | 200 | 515 | ≥ 3 | 15 | 21300 | 6420 x 2180 x 2900 |
| RP-Bend NC 250T/2500 | 250 | 3200 | 2500 | 400 | 250 | 250 | 590 | ≥ 3 | 18.5 | 19000 | 3250 x 2000 x 3200 |
| RP-Bend NC 250T/3200 | 250 | 3200 | 2540 | 400 | 250 | 250 | 535 | ≥ 3 | 18.5 | 13900 | 3840 x 2250 x 2920 |
| RP-Bend NC 250T/4000 | 250 | 4000 | 3000 | 400 | 250 | 250 | 590 | ≥ 3 | 18.5 | 20200 | 4000 x 2000 x 3400 |
| RP-Bend NC 250T/5000 | 250 | 5000 | 4000 | 400 | 250 | 250 | 535 | ≥ 3 | 18.5 | 17100 | 5640 x 2250 x 2980 |
| RP-Bend NC 250T/6000 | 250 | 6000 | 5000 | 400 | 250 | 250 | 500 | ≥ 3 | 18.5 | 18600 | 6420 x 2250 x 2980 |
| RP-Bend NC 300T/3200 | 300 | 3200 | 2530 | 400 | 250 | 250 | 590 | ≥ 3 | 22 | 20500 | 3840 x 2000 x 3450 |
| RP-Bend NC 300T/4000 | 300 | 4000 | 2900 | 400 | 250 | 250 | 535 | ≥ 3 | 22 | 24400 | 4000 x 2250 x 3115 |
| RP-Bend NC 300T/5000 | 300 | 5000 | 3900 | 400 | 250 | 250 | 535 | ≥ 3 | 22 | 27100 | 5400 x 2250 x 3115 |
| RP-Bend NC 300T/6000 | 300 | 6000 | 4900 | 400 | 250 | 250 | 535 | ≥ 3 | 22 | 29100 | 6400 x 2250 x 3520 |
| RP-Bend NC 400T/3200 | 400 | 3200 | 2530 | 400 | 320 | 220 | 600 | ≥ 2.5 | 37 | 24500 | 3840 x 2250 x 3450 |
| RP-Bend NC 400T/4000 | 400 | 4000 | 3140 | 400 | 320 | 220 | 600 | ≥ 2.5 | 37 | 30100 | 4800 x 2625 x 3700 |
| RP-Bend NC 400T/6000 | 400 | 6000 | 5000 | 400 | 320 | 220 | 600 | ≥ 2.5 | 37 | 41100 | 6800 x 2650 x 3900 |
| RP-Bend NC 500T/4000 | 500 | 4000 | 3050 | 400 | 320 | 220 | 630 | ≥ 2.5 | 37 | 42000 | 4200 x 4500 x 4760 |
| RP-Bend NC 500T/6000 | 500 | 6000 | 4760 | 400 | 320 | 220 | 630 | ≥ 2.5 | 37 | 47600 | 6200 x 4500 x 4760 |
Higher Efficiency. Reduced Maintenance. Greater Output.
Key Advantages of Hydraulic NC Press Brake
Our Hydraulic NC Press Brake combines rigid construction, precise control systems, and dependable hydraulics to deliver consistent bending accuracy, smooth operation, and reliable performance for continuous production tasks.
Numeric Control Precision
NC system provides programmable bending sequences and consistent bend accuracy for repetitive production.
Versatile Application Range
Suitable for mild steel, stainless steel, and various sheet metals with consistent bending performance.
Smooth Hydraulic Performance
Advanced hydraulic system delivers controlled force and smooth ram travel for accurate bending results.
Enhanced Productivity
Ideal for high-volume fabrication, automotive parts making, and precision sheet metal manufacturing.
User-Friendly Programming
Numeric control interface allows easy programming of angle, speed, and bend sequences for efficient operation.
Reliable and Durable Construction
Heavy-duty frame design and quality components ensure long life, minimal maintenance, and dependable results.
Standard Features & Optional Upgrades
Cybec Touch 8 PS CNC Controller
Easy Operating
- 7″ Color graphic CRT screen, with LED
- backlight control.
- Intuitive user-friendly interface.
- Simple pages, clear display, large keys.
- Large, vivid, and high-contrast fully touchscreen.
- Complete programming for efficient mass production with multiple bends.
- Easy single bends with EasyBend page.
- On-line help and interactive warning popups.
- Comfortable wireless data backup and software updating using PC or Notebook.
- A large variety of languages is available.
Better Bending
- Various automatic calculations of bend functions.
- Bending sequences and programs can be memorized.
- Angle, pressure, and crowning management.
- Easy manual movement.
- Offline 2D software is available.
Powerful
- Control 3 axes (with optional 4th axis)
- 2D graphic profile creation with manual sequencing (option).
- Bend allowance calculation.
- Pressure-crowning calculation.
- Modular tools for each part or bend.
- Angle and back gauge correction.
- Tele maintenance via wireless connection with PC or notebook.
- USB port for memory stick for data transfer/backup. 2. Better Bending Various automatic calculations of bend functions. Bending sequences and programs can be memorized. Angle, pressure, and crowning management. Easy manual movement.
From Light-Duty to Heavy-Duty Applications
C-Frame Power Press Machines by Tonnage Capacity
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
Quality Assurance Through
Our Certificates
Standard Features & Optional Upgrades
Configured to Match Your Production Requirements
Rajesh Hydraulic NC Press Brake Machines are developed precisely to meet the rigorous requirements of modern fabrication and industrial manufacturing processes. Built with a rigid frame, advanced hydraulic system, and numeric control capabilities, these machines provide excellent stability, precise force control, and programmable operation.
Each machine is designed for steady performance, enhanced safety features, and long-lasting endurance — making it the ideal option for workshops, fabrication units, and production facilities focused on quality and productivity.
Standard Equipment
- Cybtouch 8P Controller
- NC Servo Back Gauge
- Standard Tooling Set (V-Block & Punch)
- Hydraulic & Electrical overload protection
- Powered Depth Y-axis & Back gauge X-axis
- R & Z Axis (Manual Operated)
- Taiwan Made Ball screws & Polished rod with 0.05
- mm accuracy
- Emergency Stop Push Button Movable Foot Switch
- Self-Lubrication System
- Operation & Maintenance Manual Book
Safety Equipment
- Manual Crowning System
- DSP Optical Safety Guard
Why Choose Rajesh Hydraulic NC Press Brake Machines
Rajesh Hydraulic NC Press Brake Machines are designed to deliver accurate bending, consistent repeatability, and stable performance for a wide range of sheet metal fabrication applications. The rigid frame construction and balanced hydraulic system ensure precise ram movement, reliable angle control, and smooth operation, making these machines suitable for both batch production and continuous industrial use.
Each Hydraulic NC Press Brake is manufactured using high-quality steel, precision-finished components, and proven hydraulic assemblies to ensure strength, dimensional stability, and long service life. The robust structure reduces deflection during bending, supports uniform load distribution, and maintains accuracy even during extended operating cycles.
With flexible tonnage options, bending lengths, NC control configurations, and safety features, Rajesh Hydraulic NC Press Brake Machines can be configured to match specific production needs. Backed by dependable technical support and easy availability of spare parts, they help ensure consistent output, operator safety, and reliable performance across long-term manufacturing operations.
Let’s Build Your Production Power
Get in Touch with Our Experts
People Also Ask
Frequently Asked Questions
The Hydraulic NC Press Brake is equipped with an NC controller (Cybtouch 8P) and an NC servo back gauge, allowing operators to program and position the back gauge digitally. This numeric control setup enables repeatable bends with accurate positioning of the back gauge and ram axis, making it ideal for consistent production jobs.
Standard equipment includes the NC controller, servo back gauge, powered Y-axis and X-axis movement, standard tooling set (V‑block & punch), front sheet support, and overload protection for both hydraulic and electrical systems. It also has ball screws with high accuracy and safety measures like an emergency stop button.
Safety and stability are enhanced by features such as a manual crowning system to ensure even bending, a DSP optical safety guard, and a self‑lubrication system to reduce maintenance needs and improve durability.
