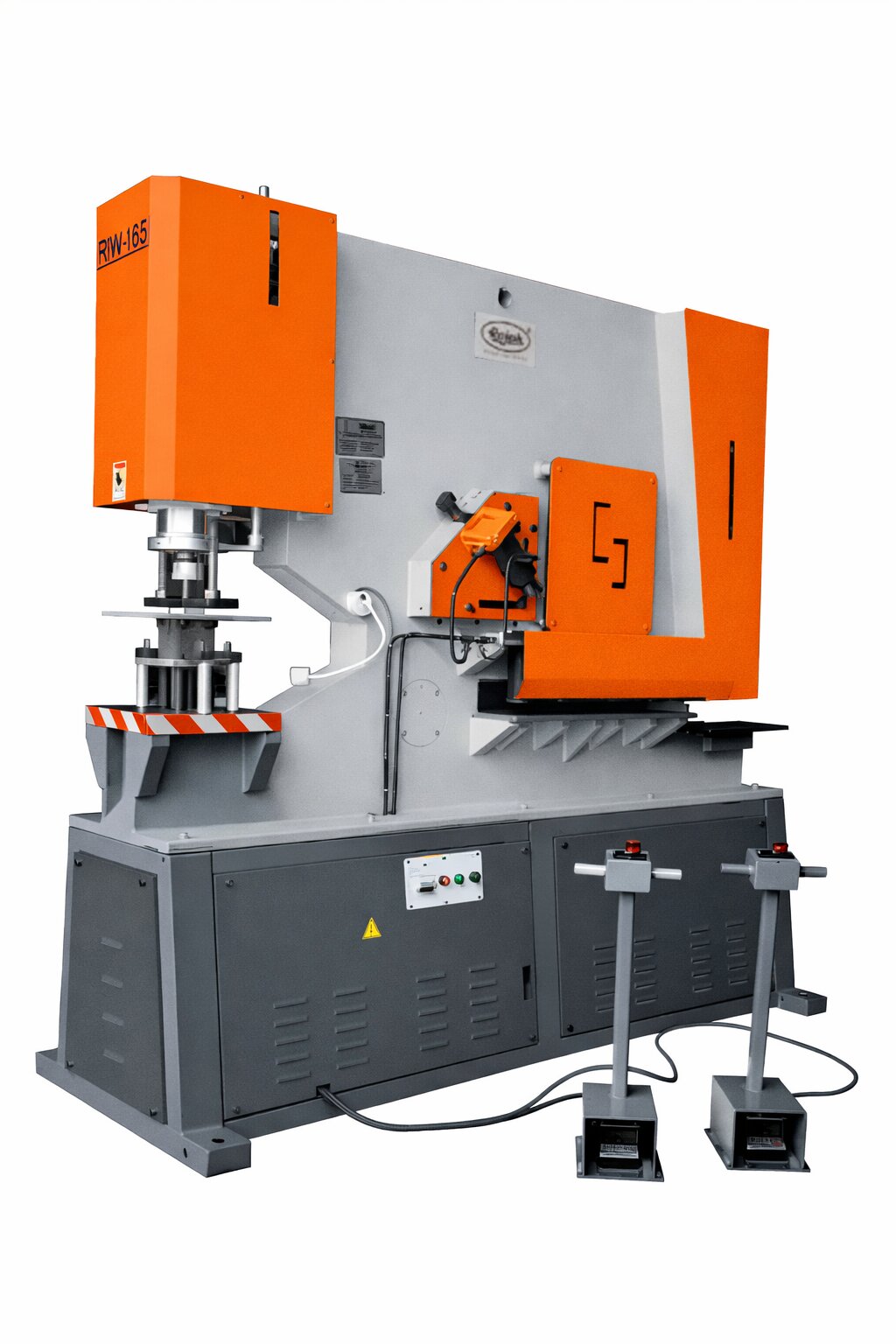

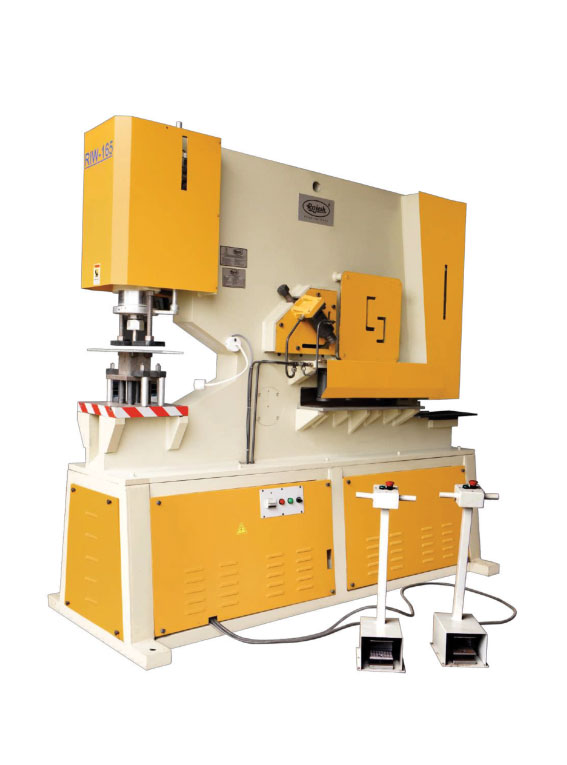

5 in 1 Hydraulic Iron Worker Machine
We manufacture high‑quality Hydraulic Iron Worker Machines to ensure powerful, versatile, and precise metalworking operations in fabrication, maintenance, and industrial applications. With a strong focus on multi‑functionality, durability, and reliable performance, our machines deliver smooth operation and high productivity. Robust engineering and customizable configurations meet the demands of modern workshops and manufacturing units.
India’s Trusted Manufacturer of Iron Worker Machines
Industrial Hydraulic Iron Worker for Modern Fabrication
A Hydraulic Iron Worker is a multi‑purpose machine designed with a hydraulic drive system to perform various metalworking tasks such as shearing, punching, notching, bending, and angle cutting. These versatile machines combine multiple functions into one robust unit, making them ideal for fabrication shops, structural workshops, and industrial production facilities. The hydraulic system ensures consistent force and smooth operation for precise results across a wide range of metalworking jobs.
Power
High‑efficiency hydraulic system delivers strong and controlled force for reliable metalworking across multiple applications.
Precision
Accurate hydraulic control and precision tooling ensure clean cuts, holes, and bends with minimal material distortion.
Durability
Heavy‑duty construction and premium hydraulic components ensure long service life and dependable operation under continuous use.
Built with Proven Manufacturing Standards
5 in 1 Hydraulic Iron Worker Machine Design & Components
Find out about the design, build quality and features that make the 5 in 1 Hydraulic Iron Worker Machine reliable for modern manufacturing processes.
FRAME CONSTRUCTION
Ironworker Machine Frame is fabricated from IS-2062 graded rolled steel plates table and cutting beam deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. These frames are strain free and eliminate welds at load supports. Thus the accuracy of the ironworker machine is never disturbed.
ELECTRICAL CONTROL PANEL
The electrical control panel is located on the left hand side of the hydraulic ironworker machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if need to be replaced. It is wire cleanly and labeled/ferruled properly as per the international practices to help easily locates any fault and replaces components conveniently.
TABLE & SLIDE (RAM)
Table are made of high grade heavy duty cast iron and properly seasoned. Slide are fabricated from IS-2062 graded rollated steel plates is deeply reinforced and fines ironworker machines after stress reliving. They are perfectly aligned, to each other to obtain high accuracy and precision press operation.
CYLINDER
The cylinder bodies are precisely made from forged steel material duly bored and fine honed or long sealing life. The piston rods are made from EN-8 material having low carbon contents. The piston rod is hard chrome platted (0.200 micron).
HYDRAULIC SYSTEM
The compact blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low noise system is placed on the rear side of ironworker machine, on the rear side of machine, on top between two side plates. Pressure relief values is provided to safe guard the system and ironworker machine from overload. This system is driven by an electric motor of reputed brand and is coupled with a pump capable if generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.
Compare Performance Before You Invest
Technical Specifications of 5 in 1 Hydraulic Iron Worker
| MODEL NO. | RIW 50 | RIW 60 | RIW 75 | RIW 90 | RIW 120 | RIW 150 |
| PUNCHING | ||||||
| Punching Pressure | 50 Ton | 60 Ton | 75 Ton | 90 Ton | 120 Ton | 150 Ton |
| Punch Capacity (Diameter x Thickness) Material Strength Of 450 N/MM' | ø 20 x 15 | ø 22 x16 | ø 22 x 20 | ø 26 x 22 | ø 26 x 26 | ø 33 x 27 |
| ø 35 x 8 | ø 45 x 8 | ø 50 x 9 | ø 50 x 12 | ø 50 x 15 | ø 50 x 18 | |
| Throat Depth | 175 | 275 | 310 | 310 | 310 | 350 |
| Maximum Stock Length | 60 | 100 | 100 | 100 | 100 | 100 |
| Cycles I Min. (20mm Stroke) | 30 | 25 / 32 | 20 | 21 | 21 | 20 |
| Working Height Up to Die | 910 | 910 | 950 | 950 | 1020 | |
| FLAT SHEARING | ||||||
| Flat Bar Shear | 250 x 8 | 300 x 12 | 350 x 15 | 460 x 15 | 610 x 16 | 610 x 18 |
| (Width x Thickness) | 180 x 12 | 240 x 16 | 240 x 20 | 300 x 20 | 400 x 20 | 400 x 25 |
| Blade Length | 260 | 310 | 360 | 465 | 620 | 620 |
| Angle Flange Trim | 65 | 65 | 75 | 100 | 100 | 100 |
| Working Height | 800 | 820 | 920 | 920 | 950 | 950 |
| ANGLE SHEARING | ||||||
| At 90 Shearing | 80 x 80 x 8 | 100 x 100 x 10 | 130 x 130 x 13 | 152 x 152 x 13 | 152 x 152 x 15 | 152 x 152 x 18 |
| At 45 Miter Shearing | 50 x 50 x 6 | 50 x 50 x 6 | 65 x 65 x 8 | 80 x 80 x 10 | 80 x 80 x 10 | 80 x 80 x 10 |
| Working Height | 1080 | 1080 | 1150 | 1150 | 1150 | 1160 |
| BAR SHEARING | ||||||
| Round Bar Shear (Dia.) | 25 | 32 | 40 | 50 | 50 | 50 |
| Square Bar Shear | 25 x 25 | 32 x 32 | 38 x 38 | 50 x 50 | 50 x 50 | 50 x 50 |
| Channel Shear | - | 100* | 130* | 152* | 152* | 180* |
| I Beam Shear | - | 100* | 130* | 152* | 152* | 180* |
| Working Height | 1150 | 1150 | 1300 | 1300 | 1315 | 1315 |
| NOTCHING | ||||||
| Rectangular (W x D x T) | 30 x 60 x 5 | 50.8 x 90 x 6 | 50.8 x 90 x 9 | 50.8 x 90 x 12 | 63.5 x 90 x 12 | 63.5 x 90 x 13 |
| Vee-Natcher (Side x Side x T) | 60 x 32 x 6* | 80 x 50 x 9* | 90 x 90 x 8* | 90 x 90 x 10* | 105 x 105 x 12* | 105 x 105 x 13* |
| Large Vee-Natcher (Side x Side x T) | - | - | 145 x 145 x 8 | 145 x 145 x 10 | 145 x 145 x 12 | 145 x 145 x 13 |
| Working Height | 850 | 850 | 850 | 860 | 860 | 860 |
| SPECIAL TOOLING | ||||||
| Single Vee Press Brake (W x T) | 160 x 6 | 250 x 10 | 250 x 15 | 250 x 15 | 250 x 20 | 250 x 20 |
| Multi Vee Press Brake (W x T) | - | 400 x 8 | 500 x 5 | 500 x 5 | 700 x 5 | 700 x 5 |
| Angle Bending | 65 x 6 | 76 x 8 | 102 x 6 | 102 x 8 | 102 x 13 | 102 x 13 |
| Pipe Notching (Dia.) | 114 | 114 | 114 | 114 | 114 | 114 |
| OTHER | ||||||
| Electric Power (HP) | 5 HP | 5 HP | 7.5 HP | 10 HP | 10 HP | 15 HP |
| Net Weight (Approx.) | 1800 kg | 2300 kg | 2600 kg | 2950 kg | 3400 kg | 3800 kg |
| Machine Dimension (Approx.) (LxWxH) | 1360 x 700 x 1450 | 1750 x 750 x 1800 | 1970 x 800 x 2000 | 2100 x 820 x 2060 | 2340 x 860 x 2110 | 2420 x 980 x 2150 |
Boost Productivity While Minimizing Downtime
Advantages of 5 in 1 Hydraulic Iron Worker Machine
Multi‑Function Metalworking Capability
Performs shearing, punching, notching, and bending all in one compact machine. Saves floor space and reduces the need for multiple separate machines.
Powerful and Controlled Hydraulic Force
High‑efficiency hydraulic system ensures consistent force delivery for reliable performance. Handles a variety of applications with ease and accuracy.
Accurate and Clean Results
Precision tooling and hydraulic control provide clean cuts, holes, and bends with minimal deformation. Reduces secondary finishing work and improves overall quality.
High Productivity
Smooth and efficient operation increases output and reduces cycle times. Ideal for busy workshops and production environments.
Versatile Material Handling
Suitable for working with mild steel, stainless steel, aluminium, and other metal types. Maintains consistent performance across different thicknesses.
User‑Friendly Operation
Simple operation and intuitive controls make setup quick and easy. Enhances workflow efficiency and reduces operator fatigue.
Standard Features & Optional Upgrades
Configured to Match Your Production Requirements
Rajesh C-Frame Pneumatic Press Machines are precisely engineered to meet the demanding needs of modern industrial production. Built with a rigid C-frame structure, these machines offer excellent tool alignment and smooth pneumatic force control for consistent results. Each press is designed to provide stable performance, enhanced safety, and long operational life, making it a reliable solution for workshops and manufacturing units focused on efficiency and quality output.
Standard Equipment
- Variable Stroke Adjustment With Limit Switch
- Quick Change Die Holder 3 in 1 – 50, 73 & Angle Punching
- Hydraulic Hold-Down
- Back Gauge
- Die Light
- Operating Mode (Inching/Auto)
- Emergency Stop Switch
- Movable Foot Switch
- Table for Punch Station
- Operation & Maintenance Manual Book
Optional Equipment
- Extra Throat Depth
- NC Gauge
From Light-Duty to Heavy-Duty Applications
C-Frame Power Press Machines by Tonnage Capacity
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
Quality Assurance Through
Our Certificates
Why Choose Rajesh 5 in 1 Hydraulic Iron Worker Machine
Rajesh Hydraulic Iron Worker Machines deliver powerful and versatile performance for punching, shearing, cutting, notching, and other essential metal fabrication operations. Designed for workshops and industrial fabrication units, these machines combine multiple functions in one compact, heavy-duty system, helping save floor space while improving workflow efficiency and productivity.
Manufactured from high-grade IS-2062 steel plates with reinforced frames, each machine is built for strength, stability, and long service life. Precision-engineered tables and slides ensure accurate alignment and smooth operation across all working stations, reducing vibration, enhancing accuracy, and maintaining consistent performance even under continuous industrial use.
The advanced hydraulic system features a compact block design for reduced leakage risk, easy maintenance, and reliable pressure control. Equipped with a dependable motor, protective overload safeguards, quality electrical components, and multiple tooling options, these machines adapt easily to varied production requirements while delivering safe, efficient, and long-term output.
Let’s Build Your Production Power
Get in Touch with Our Experts
People Also Ask
Frequently Asked Questions
The Hydraulic Iron Worker is a versatile metalworking machine designed to perform multiple tasks such as punching, shearing (flat, angle, bar & section), notching, and bending, making it suitable for a wide range of fabrication and industrial applications.
Standard safety and control features on the Hydraulic Iron Worker include an emergency stop switch, movable foot switch, hydraulic hold‑down, and a well‑labeled electrical control panel assembled with quality components to ensure reliable, safe operation.
Choosing the right model depends on the type of material and thickness you need to process, along with the desired punching/shearing capacity. Hydraulic Iron Workers are available in various tonnage ranges, so it’s best to consult the technical specifications or contact the manufacturer with your application details to match the right model to your needs.
