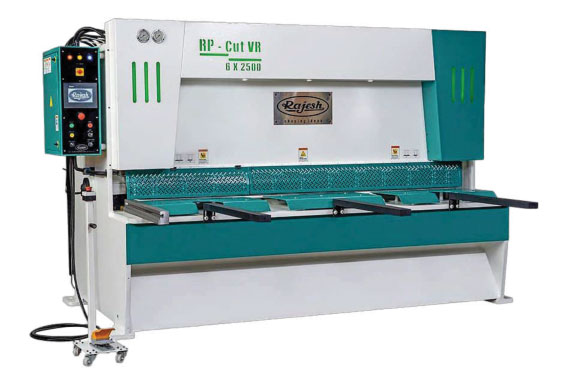

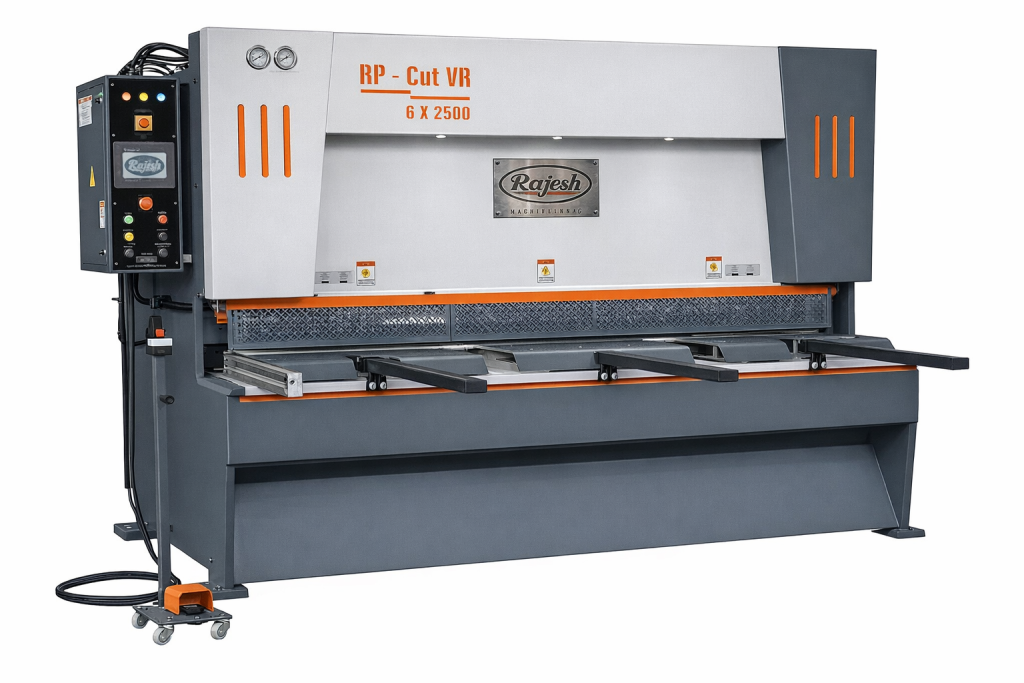

Hydraulic Guillotine Shearing Machine
We manufacture high-quality Hydraulic Guillotine Shear Machines to ensure precise and efficient cutting of sheet metal and plates. With a strong focus on cutting power, accuracy, and smooth operation, our machines deliver uniform and clean shear results. Robust engineering and customizable configurations meet the demands of modern fabrication, industrial workshops, and metal processing applications.
India’s Trusted Manufacturer of Shearing Machines
Industrial Hydraulic Guillotine Shear for Modern Fabrication
A Hydraulic Guillotine Shear is a heavy-duty cutting machine that uses hydraulically controlled vertical blade motion to shear sheet metal or plate material with precision. It provides powerful, uniform cutting force suitable for straight-line shearing of mild steel, stainless steel, aluminium, and various metal types. The guillotine design allows fast and accurate cutting with minimal distortion, making it ideal for light to heavy-duty shearing applications in fabrication shops and manufacturing units.
Speed
High-performance hydraulic system delivers strong and consistent cutting force for smooth, accurate, and reliable shearing operations.
Precision
Precisely engineered blade guidance and hydraulic control ensure uniform blade travel and clean cut edges with high repeatability.
Durability
Heavy-duty construction and premium hydraulic components ensure long service life and dependable performance under continuous use.
Engineered Structure, Smart Controls & Heavy-Duty Performance
Hydraulic Guillotine Shear Machine Design & Components
Learn about the rigid frame construction, accurate blade alignment, and hydraulic system that support clean, consistent cutting results in the Hydraulic Guillotine Shear. Designed for modern fabrication work, it provides stable operation, operator safety, and reliable performance across different sheet metal applications.
FRAME CONSTRUCTION
Hydraulic Shearing Machine (Sheet metal cutting machine) fabricated from IS-2062 graded rolled steel plates table and the cutting beam is deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the sheet metal cutting machine is never disturbed.
BLADE (KNIFE)
Knifes are manufactured strictly as per standard HCHCr/OHNS. Every step from designing metallurgical specification, heat-treatment grinding and inspection is carefully controlled. The blades are standardized and are easily replaced in sheet metal cutting machine.
TABLE
Super strong table of closed box type construction. Stress relived in a furnace. Forms a rigid backbone for the shear and a solid backing for the lower knife in sheet metal cutting machine.
BLADE CLEARANCE
The shears are equipped with leavers calibrated in thickness on both sides of the sheet metal cutting machine to adjust the clearance between top and bottom blade according the sheet thickness. The setting can be done shiftily and quickly without use of filler gauges involving cumbersome procedure and difficulty. The use of correct blade gap ensures burr-free cutting results and improves blade life considerably.
UPPER BEAM
Upper beam is also of solid steel plate, carrying the upper knife. Its minimum weight ensures lesser load on the roller. The upper beam moves in flat heat-treated steel guide plates to avoid deflection, for smooth running and maintain the accurate straightness of the upper knife.
CYLINDER
The cylinder bodies are precisely made from forged steel material duly bored and fine honed for long sealing life. The piston rods are made From EN – 8 material having low carbon contents. The piston rod is hard chrome platted (0.200 micron)
RAKE ANGLE ADJUSTMENT
In sheet metal cutting machine cutting angle of the blade is electro hydraulically adjusted with push buttons with indicator lights on the operator console. The cutting angle adjustment helps to achieve, cutting variety of material thicknesses without twist distortion.
HYDRAULIC SYSTEM
The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes in sheet metal cutting machine. This low Noise hydraulic system is placed on the rear side of sheet metal cutting machine, on top between two side plates. Pressure relief value is provided to safe guard the system and sheet metal cutting machine from overload. The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, backpressure and holding pressure are providing on top of oil tank for quick reference.
HOLD-DOWN
Solid clamping by powerful hydraulic loaded hold-down is one of the reasons for accuracy in our shears. Heavy uniform pressure is applied along the full length of the work piece, preventing slippage regardless of variations in thickness. Hold-down pressure is easily adjustable for clamping soft material. Different thickness of the material can be cut without further adjustment with consistently accurate and burr free results in sheet metal cutting machine.
Compare Cutting Capacity Before You Decide
Technical Specifications of Hydraulic Guillotine Shear
| MODEL NO. | Machine Size | Blade Length | M.S. Cutting Min/Max | S.S. Cutting Min/Max | Normal Rack Angle | Rack Angle Range | Stoke Per Minute Min/Max | Hold Downs | Holding Force | Motor | Packing Dimension (Length x With x Height) | Weight (Approx.) |
| RP-Cut VR - 2502 | 2500 x 2 | 2540 | 2/- | 1/- | 1° | Fixed Angle | 20/20 | 13 | 1600 | 3 | 3200 x 1300 x 1850 | 2900 |
| RP-Cut VR - 1204 | 1250 x 4 | 1270 | 3/4 | 2/3 | 1.37° | 0.5-3° | 23/13 | 6 | 1600 | 5 | 2200 x 1300 x1850 | 2800 |
| RP-Cut VR - 1504 | 1500 x 4 | 1525 | 3/4 | 2/3 | 1.37° | 0.5-3° | 23/13 | 8 | 1600 | 5 | 2200 x 1300 x1850 | 2800 |
| RP-Cut VR - 2004 | 2000 x 4 | 2030 | 3/4 | 2/3 | 1.37° | 0.5-3° | 19/10 | 11 | 2000 | 5 | 2200 x 1300 x1850 | 2000 |
| RP-Cut VR - 2504 | 2500 x 4 | 2540 | 3/4 | 2/3 | 1.37° | 0.5-3° | 18/10 | 13 | 2300 | 5 | 3200 x 1850 x 1950 | 3500 |
| RP-Cut VR - 3004 | 3000 x 4 | 3125 | 3/4 | 2/3 | 1.37° | 0.5-3° | 15/9 | 16 | 2500 | 5 | 3700 x 1850 x 1950 | 4400 |
| RP-Cut VR - 4004 | 4000 x 4 | 4065 | 3/4 | 2/3 | 1.37° | 0.5-3° | 12/6 | 20 | 3200 | 7.5 | 4700 x 1300 x 2250 | 5500 |
| RP-Cut VR - 1206 | 1250 x 6 | 1270 | 4/6 | 3/4 | 1.37° | 0.5-3° | 28/15 | 6 | 4000 | 5 | 2000 x 1550 x 2050 | 2500 |
| RP-Cut VR - 1506 | 1500 x 6 | 1525 | 4/6 | 3/4 | 1.37° | 0.5-3° | 23/13 | 8 | 4500 | 5 | 2250 x 1850 x 2050 | 3500 |
| RP-Cut VR - 2006 | 2000 x 6 | 2030 | 4/6 | 3/4 | 1.37° | 0.5-3° | 23/13 | 11 | 6200 | 7.5 | 2750 x 1850 x 2050 | 3600 |
| RP-Cut VR - 2506 | 2500 x 6 | 2540 | 4/6 | 3/4 | 1.37° | 0.5-3° | 19/10 | 13 | 8000 | 7.5 | 3300 x 2250 x 2400 | 4800 |
| RP-Cut VR - 3006 | 3000 x 6 | 3125 | 4/6 | 3/4 | 1.37° | 0.5-3° | 19/10 | 16 | 10000 | 10 | 3700 x 2250 x 1400 | 5500 |
| RP-Cut VR - 4006 | 4000 x 6 | 4050 | 4/6 | 3/4 | 1.37° | 0.5-3° | 15/6 | 20 | 12000 | 10 | 4700 x 2250 x 2400 | 7500 |
| RP-Cut VR - 5006 | 5000 x 6 | 5080 | 4/6 | 3/4 | 1.37° | 0.5-3° | 11/4 | 24 | 15000 | 10 | 5700 x 1900 x 2750 | 8500 |
| RP-Cut VR - 6006 | 6000 x 6 | 6250 | 4/6 | 3/4 | 1.37° | 0.5-3° | 10/3 | 28 | 15000 | 10 | 6700 x 1900 x 2850 | 9500 |
| RP-Cut VR - 1208 | 1200 x 8 | 1270 | 6/8 | 4/6 | 1.45° | 0.5-3° | 20/12 | 6 | 5500 | 7.5 | 1800 x 1700 x 1900 | 3200 |
| RP-Cut VR - 1508 | 1500 x 8 | 1525 | 6/8 | 4/6 | 1.45° | 0.5-3° | 21/12 | 8 | 6500 | 10 | 2250 x 1900 x 2100 | 3900 |
| RP-Cut VR - 2008 | 2000 x 8 | 2030 | 6/8 | 4/6 | 1.45° | 0.5-3° | 21/11 | 11 | 6500 | 10 | 2750 x 1900 x 2100 | 4300 |
| RP-Cut VR - 2508 | 2500 x 8 | 2540 | 6/8 | 4/6 | 1.45° | 0.5-3° | 18/9 | 13 | 8500 | 15 | 3300 x 2250 x 2500 | 5600 |
| RP-Cut VR - 3008 | 3000 x 8 | 3125 | 6/8 | 4/6 | 1.45° | 0.5-3° | 16/8 | 16 | 10800 | 15 | 3800 x 2250 x 2500 | 6800 |
| RP-Cut VR - 4008 | 4000 x 8 | 4050 | 6/8 | 4/6 | 2° | 0.5-3° | 22/6 | 20 | 13600 | 20 | 4800 x 2250 x 2500 | 8300 |
| RP-Cut VR - 5008 | 5000 x 8 | 5080 | 6/8 | 4/6 | 2° | 0.5-3° | 18/4 | 24 | 16500 | 20 | 5700 x 2100 x 2500 | 12300 |
| RP-Cut VR - 6008 | 6000 x 8 | 6250 | 6/8 | 4/6 | 2° | 0.5-3° | 14/3 | 28 | 19500 | 20 | 6700 x 2100 x 2500 | 15000 |
| RP-Cut VR - 1210 | 1250 x 10 | 1270 | 8/10 | 6/8 | 2° | 0.5-3° | 25/15 | 6 | 8500 | 10 | 2000 x 1850 x 2050 | 4600 |
| RP-Cut VR - 1510 | 1500 x 10 | 1525 | 8/10 | 6/8 | 2° | 0.5-3° | 23/13 | 8 | 10500 | 10 | 2250 x 2050 x 2200 | 5500 |
| RP-Cut VR - 2010 | 2000 x 10 | 2030 | 8/10 | 6/8 | 2° | 0.5-3° | 17/9 | 11 | 12000 | 15 | 2750 x 2050 x 2200 | 6000 |
| RP-Cut VR - 2510 | 2500 x 10 | 2540 | 8/10 | 6/8 | 2° | 0.5-3° | 17/9 | 13 | 16500 | 20 | 3300 x 2350 x 2600 | 7000 |
| RP-Cut VR - 3010 | 3000 x 10 | 3125 | 8/10 | 6/8 | 2° | 1-3° | 15/8 | 16 | 18500 | 20 | 3800 x 2350 x 2600 | 8000 |
| RP-Cut VR - 4010 | 4000 x 10 | 4050 | 8/10 | 6/8 | 2° | 1-3° | 16/4 | 20 | 23000 | 20 | 4800 x 2350 x 2800 | 10500 |
| RP-Cut VR - 5010 | 5000 x 10 | 5080 | 8/10 | 6/8 | 2° | 0.5-3° | 12/3 | 24 | 27000 | 25 | 2750 x 2400 x 2900 | 13000 |
| RP-Cut VR - 6010 | 6000 x 10 | 6250 | 8/10 | 6/8 | 2° | 0.5-3° | 8/2 | 28 | 31000 | 25 | 6750 x 2500 x 3100 | 16000 |
| RP-Cut VR - 1213 | 1250 x 13 | 1270 | 10/13 | 8/10 | 2° | 0.5-3° | 21/12 | 6 | 8500 | 10 | 2000 x 1900 x 2150 | 4800 |
| RP-Cut VR - 1513 | 1500 x 13 | 1525 | 10/13 | 8/10 | 2° | 0.5-3° | 18/10 | 8 | 10500 | 15 | 2250 x 2050 x 2300 | 5700 |
| RP-Cut VR - 2013 | 2000 x 13 | 2030 | 10/13 | 8/10 | 2° | 0.5-3° | 15/8 | 11 | 13000 | 15 | 2750 x 2050 x 2300 | 6700 |
| RP-Cut VR - 2513 | 2500 x 13 | 2540 | 10/13 | 8/10 | 2° | 0.5-3° | 13/7 | 13 | 17500 | 20 | 3300 x 2500 x 2600 | 7500 |
| RP-Cut VR - 3013 | 3000 x 13 | 3125 | 10/13 | 8/10 | 2° | 0.5-3° | 13/6 | 16 | 20000 | 20 | 3800 x 2500 x 2600 | 10300 |
| RP-Cut VR - 4013 | 4000 x 13 | 4050 | 10/13 | 8/10 | 2° | 0.5-3° | 13/6 | 20 | 25000 | 25 | 4800 x 2500 x 2600 | 13000 |
| RP-Cut VR - 5013 | 5000 x 13 | 5080 | 10/13 | 8/10 | 2° | 0.5-3° | 10/5 | 24 | 30000 | 30 | 5750 x 2500 x 2800 | 16000 |
| RP-Cut VR - 6013 | 6000 x 13 | 6250 | 10/13 | 8/10 | 2° | 0.5-3° | 8/3 | 28 | 35000 | 30 | 6750 x 2500 x 3100 | 24000 |
| RP-Cut VR - 1516 | 1500 x 16 | 1525 | 13/16 | 10/13 | 2° | 1-3° | 15/8 | 8 | 13000 | 15 | 2400 x 2050 x2300 | 6600 |
| RP-Cut VR - 2016 | 2000 x 16 | 2030 | 13/16 | 10/13 | 2° | 1-3° | 15/8 | 11 | 16000 | 20 | 2750 x 2200x 2500 | 9000 |
| RP-Cut VR - 2516 | 2500 x 16 | 2540 | 13/16 | 10/13 | 2° | 1-3° | 13/7 | 13 | 20000 | 25 | 3350 x 2600x 2800 | 10000 |
| RP-Cut VR - 3016 | 3000 x 16 | 3125 | 13/16 | 10/13 | 2° | 1-3° | 11/6 | 16 | 25000 | 25 | 3800 x 2600 x 2800 | 12000 |
| RP-Cut VR - 4016 | 4000 x 16 | 4050 | 13/16 | 10/13 | 2° | 1-3° | 10/4 | 20 | 30000 | 30 | 4800 x 2600 x 2900 | 16000 |
| RP-Cut VR - 5016 | 5000 x 16 | 5080 | 13/16 | 10/13 | 2° | 1-3° | 9/4 | 24 | 35000 | 40 | 5750 x 2600 x 3100 | 20000 |
| RP-Cut VR - 2016 | 2000 x 16 | 2030 | 13/16 | 10/13 | 2° | 1-3° | 15/8 | 11 | 16000 | 20 | 2750 x 2200 x 2500 | 9000 |
| RP-Cut VR - 2516 | 2500 x 16 | 2540 | 13/16 | 10/13 | 2° | 1-3° | 13/7 | 13 | 20000 | 25 | 3350 x 2600 x 2800 | 10000 |
| RP-Cut VR - 3016 | 3000 x 16 | 3125 | 13/16 | 10/13 | 2° | 1-3° | 11/6 | 16 | 25000 | 25 | 3800 x 2600 x 2800 | 12000 |
| RP-Cut VR - 4016 | 4000 x 16 | 4050 | 13/16 | 10/13 | 2° | 1-3° | 10/4 | 20 | 30000 | 30 | 4800 x 2600 x 2900 | 16000 |
| RP-Cut VR - 5016 | 5000 x 16 | 5080 | 13/16 | 10/13 | 2° | 1-3° | 9/4 | 24 | 35000 | 40 | 5750 x 2600 x 3100 | 20000 |
| RP-Cut VR - 6016 | 6000 x 16 | 6250 | 13/16 | 10/13 | 2° | 1-3° | 7/3 | 28 | 40000 | 40 | 6750 x 2500 x 3100 | 28000 |
| RP-Cut VR - 2020 | 2000 x 20 | 2030 | 16/20 | 13/16 | 2° | 1-3° | 15/8 | 11 | 20000 | 25 | 2750 x 2200 x 2600 | 11000 |
| RP-Cut VR - 2520 | 2500 x 20 | 2540 | 16/20 | 13/16 | 2° | 1-3° | 13/7 | 13 | 25000 | 30 | 3500 x 2600 x 2900 | 13500 |
| RP-Cut VR - 3020 | 3000 x 20 | 3125 | 16/20 | 13/16 | 2° | 1-3° | 10/5 | 16 | 28000 | 30 | 4000 x 2600 x 2900 | 16000 |
| RP-Cut VR - 4020 | 4000 x 20 | 4050 | 16/20 | 13/16 | 2° | 1-3° | 7/3 | 20 | 33000 | 30 | 5100 x 2750 x 2900 | 19000 |
| RP-Cut VR - 5020 | 5000 x 20 | 5080 | 16/20 | 13/16 | 2° | 1-3° | 7/3 | 24 | 38000 | 40 | 5750 x 2800 x 3000 | 26000 |
| RP-Cut VR - 6020 | 6000 x 20 | 6250 | 16/20 | 13/16 | 2° | 1-3° | 5/2 | 28 | 43000 | 40 | 6750 x 2900 x 3100 | 32500 |
| RP-Cut VR - 2525 | 2500 x 25 | 2540 | 20/25 | 16/20 | 2° | 1-3° | 12/5 | 13 | 28000 | 40 | 3500 x 2750 x 3000 | 18000 |
| RP-Cut VR - 3025 | 3000 x 25 | 3125 | 20/25 | 16/20 | 2° | 1-3° | 11/5 | 16 | 35000 | 40 | 4000 x 2750 x 3100 | 20000 |
| RP-Cut VR - 4025 | 4000 x 25 | 4050 | 20/25 | 16/20 | 2° | 1-3° | 9/4 | 20 | 40000 | 50 | 5100 x 2800 x 3000 | 24000 |
| RP-Cut VR - 5025 | 5000 x 25 | 5080 | 20/25 | 16/20 | 2° | 1-3° | 8/3 | 24 | 45000 | 60 | 5800 x 2900 x 3500 | 31000 |
| RP-Cut VR - 6025 | 6000 x 25 | 6250 | 20/25 | 16/20 | 2° | 1-3° | 5/2 | 28 | 50000 | 60 | 6800 x 3000 x 4000 | 37000 |
Higher Output. Reduced Delays. Consistent Results.
Key Advantages of Hydraulic Swing Beam Shear
The Hydraulic Swing Beam Shear features a rigid frame, smooth beam movement, and accurate blade settings to support clean cuts, steady operation, and dependable performance across daily sheet metal cutting tasks.
Powerful and Uniform Cutting Force
The hydraulic system delivers consistent cutting pressure across the blade, ensuring smooth and accurate shearing. This results in clean cuts with minimal material deformation.
High Productivity
Fast and smooth hydraulic cutting cycles help increase output and reduce downtime. Ideal for continuous and high-volume production environments.
Accurate and Clean Shearing
Precision-engineered blade guidance provides straight, burr-free edges on every cut. It reduces the need for secondary finishing operations.
Versatile Material Capability
Designed to cut mild steel, stainless steel, aluminium, and other sheet metals efficiently. Maintains consistent performance across varying material grades.
Adjustable Blade Gap
Blade clearance can be adjusted easily to suit different material thicknesses. This improves cutting quality while extending blade life.
User-Friendly Operation
Simple and intuitive controls allow easy machine operation with minimal training. Enhances operator comfort and overall workflow efficiency.
Standard Features & Optional Upgrades
Configured to Match Your Production Requirements
Rajesh Hydraulic Guillotine Shear Machines are developed precisely to meet the rigorous requirements of modern metal fabrication and industrial cutting processes. Built with a robust frame, advanced hydraulic system, and precision-engineered blade assembly, these machines provide excellent stability, dependable force transmission, and smooth cutting performance.
Each machine is carefully designed to ensure steady performance, enhanced safety features, and long-lasting endurance — making it an ideal solution for workshops and manufacturing units focused on productivity, quality, and cutting accuracy.
Standard Equipment
- Variable Rake Angle Adjustment by HMI (Display)
- Hydraulic Hold-Downs
- Rapid Blade Clearance Adjustment
- Cutting Length Timer
- Front Operator Control Box
- Movable Foot Switch
- Front Gauge
- Four Edge Interchangeable Shear Blade
- Operation and Maintenance Manual Book
Optional Equipment
- Multi Step DDC Back Gauge
- NC Servo Back Gauge
- Cutting Sheet Collector
- Pneumatic Sheet Support
Quality Assurance Through
Our Certificates
Find the Right Machine Within Your Budget
Hydraulic Shearing Machine Prices
| HYDRAULIC SHEARING MACHINE | ||
| MODEL NO. | Machine Size | Website Price - Starting From |
| RP-Cut VR - 1504 | 1500 x 4 | 550,000 |
| RP-Cut VR - 2504 | 2500 x 4 | 625,000 |
| RP-Cut VR - 3004 | 3000 x 4 | 755,000 |
| RP-Cut VR - 1506 | 1500 x 6 | 625,000 |
| RP-Cut VR - 2506 | 2500 x 6 | 810,000 |
| RP-Cut VR - 3006 | 3000 x 6 | 950,000 |
| RP-Cut VR - 1508 | 1500 x 8 | 750,000 |
| RP-Cut VR - 2508 | 2500 x 8 | 980,000 |
| RP-Cut VR - 3008 | 3000 x 8 | 1,100,000 |
| RP-Cut VR - 1510 | 1500 x 10 | 1,000,000 |
| RP-Cut VR - 2510 | 2500 x 10 | 1,250,000 |
| RP-Cut VR - 3010 | 3000 x 10 | 1,475,000 |
| RP-Cut VR - 6016 | 6000 x 16 | 5,500,000 |
MULTI STEP DDC BACK GAUGE
- 4.3” Digital Touch Color Display
- Delta/Schneider PLC System
- X – Axis Motorized Back Gauge
- AC Induction Geared Brake Motor
- Precision Grounded Lead Screw and Shaft
- Movable Foot Switch
- Front Gauge
- Four Edge Interchangeable Shear Blade
- Operation and Maintenance Manual Book

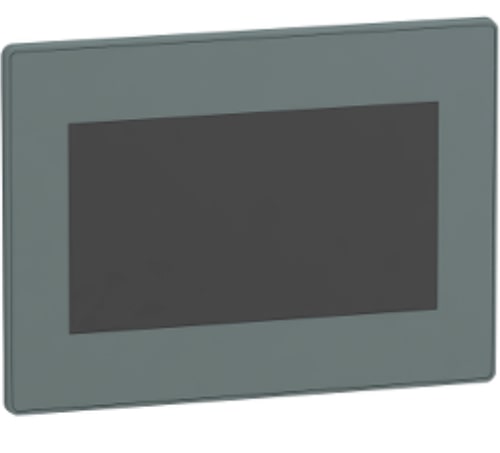

DELEM DAC310
- 7” Digital Touch Color Display
- Delta/Schneider PLC System
- X – Axis Servo Back Gauge
- Schneider/Siemens/Panasonic Servo Motor and
- Servo Drive
- Taiwan Made Ball Screw
- Taiwan Hardened and Grounded Shaft & LM Bush
- Automatic Rake Angle Adjustment
- Cutting Length Timer
- Auto Program Function
- Stroke Counter
- Inch/Single/Auto Stroke Cycle
From Light-Duty to Heavy-Duty Applications
C-Frame Power Press Machines by Tonnage Capacity
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
Why Choose Rajesh Hydraulic Swing Beam Shear
Rajesh Hydraulic Swing Beam Shears are built to deliver consistent cutting accuracy for sheet metal processing tasks. The rigid frame structure and balanced swing beam mechanism allow smooth blade movement, proper alignment, and stable cutting action, making these machines suitable for fabrication units, workshops, and production environments that require dependable daily performance.
Each machine is manufactured using high-grade steel and carefully machined components to maintain strength, structural stability, and long service life. The solid construction helps reduce vibration, supports accurate cuts, and keeps maintenance needs minimal even during extended operating hours.
Rajesh Power Press Hydraulic Swing Beam Shears can be configured to match production requirements with suitable cutting capacities, control options, safety systems, and back gauge settings. Supported by prompt service assistance and readily available spare parts, these machines help maintain workflow continuity, operator safety, and steady output over time.
Let’s Build Your Production Power
Get in Touch with Our Experts
People Also Ask
Frequently Asked Questions
A Hydraulic Guillotine Shearing Machine is a type of sheet metal cutting equipment that uses hydraulic power to drive a straight blade against a fixed lower blade to make precise cuts in metal sheets. It’s widely used in industries for clean, burr‑free cutting of mild steel, stainless steel, and other sheet metals in fabrication, manufacturing, and workshop environments.
The machine includes key features such as hydraulic hold‑downs for secure clamping, rapid blade clearance adjustment, a cutting length timer, front operator control box, movable foot switch, front gauge, and four‑edge interchangeable shear blades. These features help provide accurate, consistent, and efficient cutting performance.
Yes. Optional equipment can be added to enhance functionality, including a Multi Step DDC Back Gauge or an NC Servo Back Gauge for automated positioning, cutting sheet collectors, and pneumatic sheet support systems – allowing better control, automation, and material handling based on your production needs.
