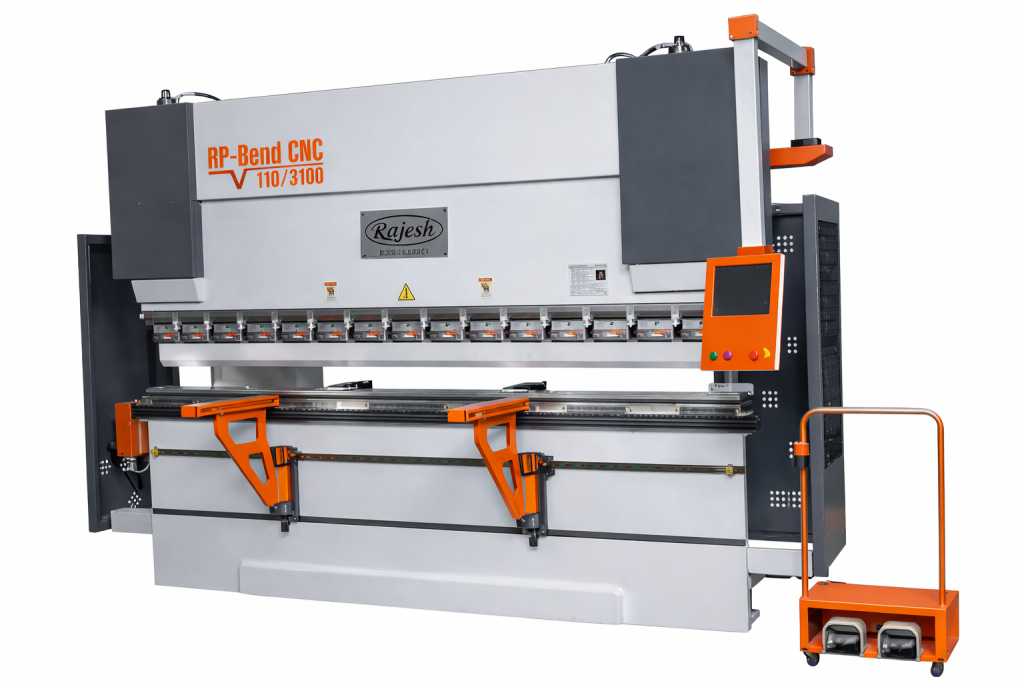

Hydraulic CNC Press Brake Machine
We manufacture high-quality Hydraulic CNC Press Brake Machines to ensure precise and programmable bending, forming, and shaping of sheet metal with exceptional accuracy and efficiency. With a strong focus on advanced control, durability, and operational performance, our machines deliver smooth operation with consistent output. Robust engineering and customizable configurations meet the demands of modern fabrication and industrial manufacturing environments.
India’s Trusted Manufacturer of CNC Press Brake Machines
Industrial Hydraulic CNC Press Brake Machine for Modern Production
A Hydraulic CNC Press Brake Machine combines hydraulic power with advanced CNC (Computer Numerical Control) technology to deliver programmable and highly accurate bending operations. It is widely used for complex sheet metal bending tasks, offering precise control over force, angle, and sequence. The CNC system allows operators to program multiple bending steps and reproduce them with consistent precision — making it ideal for high-volume manufacturing and demanding fabrication applications.
Speed
High-performance hydraulic system delivers strong, smooth, and controllable force for efficient and reliable bending operations.
Precision
CNC control ensures repeatable accuracy, precise bend angles, and consistent results across production runs.
Durability
Heavy-duty construction with premium hydraulic and control components ensures long service life and dependable operation under continuous use.
Precision Built. Consistent Results.
Hydraulic CNC Press Brake Machine Construction & Capabilities
Learn about the structural design, control system accuracy, and build quality that make Hydraulic CNC Press Brake Machines dependable for modern sheet-metal bending and industrial fabrication task
FRAME CONSTRUCTION
C Frame Pneumatic Press fabricated from IS-2062 graded rolled steel plates. Frame is deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.
FLYWHEEL
Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the cutting operations, and properly balanced for smooth running.
TABLE & SLIDE (RAM)
Table and Slide are made of high grade heavy duty cast iron and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precession press operation.
HIGH QUALITY CRANK SHAFT
The strong crank shaft with outstanding rigidity ensures that accuracy can be maintained under qualified standard and extends the life of tooling. Auto Lubrication System: The auto lubrication system with default monitor ensures high reliable operation.
MAIN AND PINION SHAFT
Shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life and accuracy. Gears: Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
AUTO LUBRICATION SYSTEM
The auto lubrication system with default monitor ensures high reliable operation.
GEARS
Gears are of steel cast of fabricated. Gear teeth are generated by precision hobbing machine.
PNEUMATIC DRY CLUTCH
The fail-safe, pneumatically operated clutch brake combination is designed to provide excellent slide motion control even at high speeds. Adequate energy required for blanking operation is ensured by optimised design of the flywheel.
DUAL SAFETY VALVE
Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
Compare Features Before You Decide
Technical Specifications of Hydraulic CNC Press Brake Machine
| MODEL NO. | Bending Capacity | Clear Pass | Open Daylight | Ram Stroke | Table Width | Table Height | Throat Depth | X Axis Travel | R Axis Travel | Main Electirc Motor | Efficient Approach - Working - Return | Packing Dimension (Length x With x Height) |
| RP-Bend CNC 30T/1500 | 1500 x 2 | 1250 | 385 | 200 | 90 | 850 | 250 | 400 | 200 | 3 | 100 - 6 - 65 | 1700 x 1250 x 2000 |
| RP-Bend CNC 30T/2000 | 2000 x 1.8 | 1550 | 385 | 200 | 90 | 850 | 250 | 400 | 200 | 3 | 100 - 6 - 65 | 2200 x 1250 x 2100 |
| RP-Bend CNC 40T/1500 | 1500 x 3 | 1250 | 385 | 200 | 90 | 850 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 1700 X 1300 X 2100 |
| RP-Bend CNC 40T/2000 | 2000 x 2.5 | 1550 | 385 | 200 | 90 | 850 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 2200 x 1300 x 2100 |
| RP-Bend CNC 40T/2500 | 2500 x 2 | 2050 | 385 | 200 | 90 | 850 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 2700 x 1300 x 2200 |
| RP-Bend CNC 40T/3000 | 3000 x 1.6 | 2600 | 385 | 200 | 90 | 850 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 3300 x 1300 x 2200 |
| RP-Bend CNC 50T/2000 | 2000 x 3 | 1550 | 385 | 200 | 90 | 850 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 2200 x 1300 x 2200 |
| RP-Bend CNC 50T/2500 | 2500 x 2.5 | 2050 | 385 | 200 | 90 | 850 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 2700 x 1300 x 2300 |
| RP-Bend CNC 50T/3100 | 3100 x 2 | 2600 | 385 | 200 | 90 | 850 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 3300 x 1300 x 2300 |
| RP-Bend CNC 65T/2000 | 2000 x 3.5 | 1550 | 385 | 200 | 90 | 930 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 2200 x 1400 x 2500 |
| RP-Bend CNC 65T/2500 | 2500 x 3 | 2050 | 385 | 200 | 90 | 930 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 2700 x 1400 x 2500 |
| RP-Bend CNC 65T/3100 | 3100 x 2 | 2600 | 385 | 200 | 90 | 930 | 250 | 400 | 200 | 5 | 100 - 7 - 80 | 3300 x 1400 x 2500 |
| RP-Bend CNC 80T/2000 | 2000 x 5 | 1550 | 385 | 200 | 90 | 930 | 250 | 600 | 200 | 7.5 | 100 - 6 - 80 | 2250 x 1400 x 2600 |
| RP-Bend CNC 80T/2500 | 2500 x 4 | 2050 | 385 | 200 | 90 | 930 | 250 | 600 | 200 | 7.5 | 100 - 6 - 80 | 2750 x 1400 x 2600 |
| RP-Bend CNC 80T/3100 | 3100 x 3 | 2600 | 385 | 200 | 90 | 930 | 250 | 600 | 200 | 7.5 | 100 - 6 - 80 | 3300 x 1400 x 2650 |
| RP-Bend CNC 80T/4100 | 4100 x 2 | 3500 | 385 | 200 | 90 | 930 | 250 | 600 | 200 | 7.5 | 100 - 6 - 80 | 4300 x 1400 x 2800 |
| RP-Bend CNC 100T/2500 | 2500 x 5 | 2050 | 385 | 200 | 90 | 930 | 300 | 600 | 200 | 10 | 100 - 7 - 80 | 2750 x 1600 x 2700 |
| RP-Bend CNC 100T/3100 | 3100 x 4 | 2600 | 385 | 200 | 90 | 930 | 300 | 600 | 200 | 10 | 100 - 7 - 80 | 3300 x 1600 x 2800 |
| RP-Bend CNC 100T/4100 | 4100 x 3 | 3500 | 385 | 200 | 90 | 930 | 300 | 600 | 200 | 10 | 100 - 7 - 80 | 4300 x 1600 x 2900 |
| RP-Bend CNC 100T/5100 | 5100 x 2.5 | 4500 | 385 | 200 | 90 | 930 | 300 | 600 | 200 | 10 | 100 - 7 - 80 | 5350 x 1600 x 3200 |
| RP-Bend CNC 160T/2500 | 2500 x 8 | 2050 | 385 | 200 | 90 | 930 | 300 | 600 | 200 | 15 | 100 - 6 - 80 | 2800 x 1800 x 2900 |
| RP-Bend CNC 160T/3100 | 3100 x 6 | 2600 | 385 | 200 | 90 | 930 | 300 | 600 | 200 | 15 | 100 - 6 - 80 | 3300 x 1800 x 2900 |
| RP-Bend CNC 160T/4100 | 4100 x 5 | 3500 | 385 | 200 | 90 | 930 | 300 | 600 | 200 | 15 | 100 - 6 - 80 | 4300 x 1800 x 3200 |
| RP-Bend CNC 160T/5100 | 5100 x 3.5 | 4500 | 385 | 200 | 90 | 1020 | 300 | 600 | 200 | 15 | 100 - 6 - 80 | 5350 x 1800 x 3400 |
| RP-Bend CNC 200T/3100 | 3100 x 8 | 2600 | 385 | 200 | 90 | 930 | 300 | 600 | 200 | 20 | 100 - 6 - 80 | 3350 x 1900 x 2900 |
| RP-Bend CNC 200T/4100 | 4100 x 6 | 3500 | 385 | 200 | 90 | 930 | 300 | 600 | 200 | 20 | 100 - 6 - 80 | 4350 x 1900 x 3250 |
| RP-Bend CNC 200T/5100 | 5100 x 5 | 4500 | 385 | 200 | 90 | 1020 | 300 | 600 | 200 | 20 | 100 - 6 - 80 | 5350 x 2000 x 3500 |
| RP-Bend CNC 250T/3100 | 3100 x 10 | 2600 | 435 | 250 | 90 | 930 | 300 | 600 | 200 | 25 | 80 - 6 -80 | 3350 x 2100 x 2900 |
| RP-Bend CNC 250T/4100 | 4100 x 8 | 3500 | 435 | 250 | 90 | 930 | 300 | 600 | 200 | 25 | 80 - 6 -80 | 4350 x 2100 x 3300 |
| RP-Bend CNC 250T/5100 | 5100 x 6 | 4500 | 435 | 250 | 90 | 1020 | 300 | 600 | 200 | 25 | 80 - 6 -80 | 5350 x 2100 x 3600 |
| RP-Bend CNC 325T/3100 | 3100 x 12 | 2600 | 435 | 250 | 220 | 930 | 350 | 600 | 200 | 25 | 80 - 6 -80 | 3400 x 2100 x 3200 |
| RP-Bend CNC 325T/4100 | 4100 x 10 | 3500 | 435 | 250 | 220 | 950 | 350 | 600 | 200 | 25 | 80 - 6 -80 | 4400 x 2100 x 3400 |
| RP-Bend CNC 325T/5100 | 5100 x 8 | 4500 | 435 | 250 | 220 | 1020 | 350 | 600 | 200 | 25 | 80 - 6 -80 | 5400 x 2200 x 3750 |
| RP-Bend CNC 400T/3100 | 3100 x 16 | 2600 | 560 | 375 | 220 | 930 | 400 | 600 | 200 | 40 | 75 - 5 - 80 | 3400 x 2200 x 3500 |
| RP-Bend CNC 400T/4100 | 4100 x 21 | 3300 | 560 | 375 | 220 | 1020 | 400 | 600 | 200 | 40 | 75 - 5 - 80 | 4400 x 2200 x 3600 |
| RP-Bend CNC 400T/5100 | 5100 x 10 | 4300 | 560 | 375 | 220 | 1020+P | 400 | 600 | 200 | 40 | 75 - 5 - 80 | 5400 x 2400 x 4100 |
| RP-Bend CNC 400T/6100 | 6100 x 8 | 5300 | 560 | 375 | 220 | 1020+P | 400 | 600 | 200 | 40 | 75 - 5 - 80 | 6400 x 2500 x 4200 |
| RP-Bend CNC 500T/3100 | 3100 x 20 | 2600 | 560 | 375 | 220 | 1020 | 400 | 600 | 200 | 50 | 75 - 5 - 80 | 3400 x 2200 x 3600 |
| RP-Bend CNC 500T/4100 | 4100 x 15 | 3300 | 560 | 375 | 220 | 1020 | 400 | 600 | 200 | 50 | 75 - 5 - 80 | 4400 x 2200 x 3900 |
| RP-Bend CNC 500T/5100 | 5100 x 12 | 4300 | 560 | 375 | 220 | 1020+P | 400 | 600 | 200 | 50 | 75 - 5 - 80 | 5400 x 2400 x 4250 |
| RP-Bend CNC 500T/6100 | 6100 x 10 | 5300 | 560 | 375 | 220 | 1020+P | 400 | 600 | 200 | 50 | 75 - 5 - 80 | 6400 x 2500 x 4500 |
Higher Efficiency. Smoother Operation. Greater Accuracy.
Key Advantages of Hydraulic CNC Press Brake Machine
Our Hydraulic CNC Press Brake Machines combine rigid construction, advanced control systems, and operator-friendly functionality to deliver precise bending, dependable performance, and consistent productivity for demanding fabrication tasks.
Programmable CNC Control
Advanced CNC interface allows programming of multiple bending sequences with high precision, reducing setup time and operator dependency.
Versatile Sheet Metal Capability
Suitable for mild steel, stainless steel, aluminium, and various sheet metal types with dependable performance.
Smooth and Consistent Bending Force
The hydraulic system delivers controlled force and smooth ram travel for accurate bending results.
Enhanced Productivity
Designed for high-volume fabrication, automotive manufacturing, appliance production, and precision sheet metal work.
Repeatable Accuracy
CNC control ensures consistent and precise bend angles across large production runs.
Durable and Reliable Construction
Heavy-duty frame and quality components ensure long life, reduced downtime, and dependable operation in industrial environments.
Standard Features & Optional Upgrades
Configured to Match Your Production Requirements
Rajesh Hydraulic CNC Press Brake Machines are developed precisely to meet the rigorous requirements of modern industrial fabrication and manufacturing processes. Built with a robust frame, advanced hydraulic system, and high-end CNC controller, these machines provide excellent stability, programmable control, and precise force distribution.
Each machine is designed to ensure steady performance, enhanced safety features, and long-lasting endurance — making it an ideal solution for workshops, fabrication units, and production facilities focused on high-quality output and productivity.
Standard Features with Cybelec Cyb Touch 8 PS Controller
- Cyb Touch 8 PS Controller
- Y1, Y2, Independent Hydraulic Cylinders
- Proportional Valve Technology
- X Axis Back Gauge
- Manual Crowing System
- Mechanical Upper Tool Clamping
- Mechanical Lower Tool Clamping
- 2 Front Gauge Support
- 2 Back Gauge Finger
- Standard Set of Top and Bottom Tools
Standard Features with Cybelec Cyb Touch 12 PS Controller
- Cyb Touch 12 PS Controller
- Y1, Y2, Independent Hydraulic Cylinders
- Proportional Valve Technology
- X – R Two Axis Back Gauge
- Manual Crowing System
- Mechanical Upper Tool Clamping
- Mechanical Lower Tool Clamping
- 2 Front Gauge Support
- 2 Back Gauge Finger
- Standard Set of Top and Bottom Tools

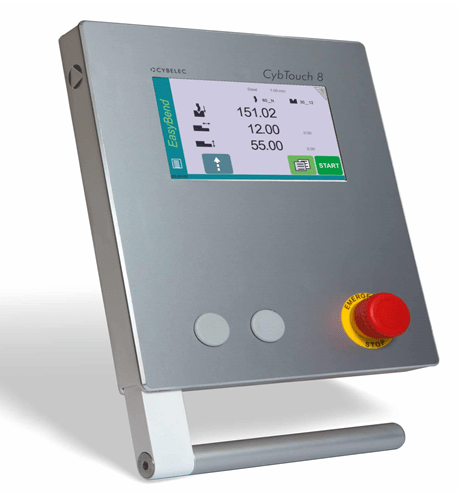

Cybec Touch 8 PS CNC Controller
Easy Operating
- 7″ Color graphic CRT screen, with LED backlight control.
- Intuitive user-friendly interface.
- Simple pages, clear display, large keys.
- Large, vivid, and high-contrast fully touchscreen.
- Complete programming for efficient mass production with multiple bends.
- Easy single bends with EasyBend page.
- On-line help and interactive warning popups.
- Comfortable wireless data backup and software updating using PC or Notebook.
- A large variety of languages is available.
Better Bending
- Various automatic calculations of bend functions. Bending sequences and programs can be memorized.
- Angle, pressure, and crowning management. Easy manual movement.
- Offline 2D software is available.
Powerful
- Control 3 axes (with optional 4th axis) 2D graphic profile creation with manual sequencing (option).
- Bend allowance calculation.
- Pressure-crowning calculation.
- Modular tools for each part or bend.
- Angle and back gauge correction.
- Tele maintenance via wireless connection with PC or notebook.
- USB port for memory stick for data transfer/backup.
Easy Operating
- 7″ Color graphic CRT screen, with LED backlight control.
- Large, vivid and high-contrast fully touchscreen.
- Simple pages, clear display, large keys.
- Intuitive user-friendly interface.
- Complete programming for efficient mass-production with multiple bends.
- Easy single bends with EasyBend page.
- On-line help and interactive warning popups.
- Comfortable wireless data backup and software updating using PC or Notebook.
- Large variety of languages available.
Better Bending
- Various automatic calculations of bend functions.
- Bending sequences and programs can be memorized.
- Angle, pressure and crowning management. Easy manual movement.
- Offline 2D software available
Powerful
- Control 4 Axis.
- Automatic bend sequencing (option).
- Bend allowance calculation.
- Pressure – crowning calculation.
- Modular tools for each part or bend.
- Angle and back gauge correction.
- Tele maintenance via wireless connection with PC or notebook.
- USB port for memory stick for data transfer/backup.
Cybec Touch 12 PS CNC Controller

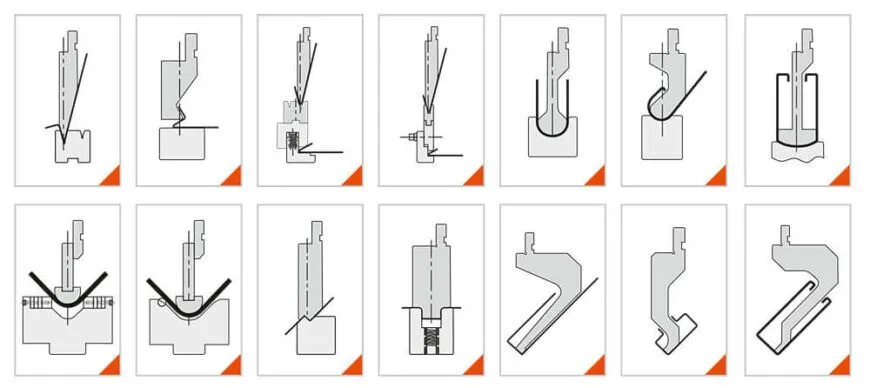

Tooling Drawing CNC
CNC Press Break Prices
| CNC PRESS BRAKE | ||
| MODEL | Machine Size | Website Price Starting From |
| RP-BEND CNC 40T/1500 | 1500 x 3 | 1,600,000 |
| RP-BEND CNC 40T/2500 | 2500 x 2 | 1,700,000 |
| RP-BEND CNC 65T/2500 | 2500 x 3 | 1,800,000 |
| RP-BEND CNC 80T/2500 | 2500 x 4 | 2,000,000 |
| RP-BEND CNC 80T/3100 | 3100 x 3 | 2,150,000 |
| RP-BEND CNC100T/2500 | 2500 x 5 | 2,250,000 |
| RP-BEND CNC 100T/3100 | 3100 x 4 | 2,300,000 |
| RP-BEND CNC 160T/3100 | 3100 x 6 | 2,800,000 |
| RP-BEND CNC 200T/3100 | 3100 x 8 | 3,500,000 |
| RP-BEND CNC 325T/3100 | 3100 x 12 | 4,000,000 |
From Light-Duty to Heavy-Duty Applications
C-Frame Power Press Machines by Tonnage Capacity
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
Quality Assurance Through
Our Certificates
Why Choose Rajesh Hydraulic CNC Press Brake Machines
Rajesh Hydraulic CNC Press Brake Machines deliver consistent bending accuracy for sheet-metal fabrication, forming, and industrial production. Their rigid frame structure ensures proper alignment, smooth ram movement, and stable operation, making them suitable for both high-volume manufacturing and precision workshop applications.
Each machine is manufactured using high-quality steel and carefully engineered hydraulic and CNC components to provide strength, stability, and long operational life. The solid construction minimizes deflection, improves bending accuracy, and reduces maintenance needs, even under continuous working conditions.
Rajesh Hydraulic CNC Press Brake Machines can be configured to match your production requirements with adjustable bending capacity, programmable controls, safety systems, and automation options. Supported by reliable service assistance and genuine spare parts, these machines help maintain productivity, accuracy, and dependable performance for years.
Let’s Build Your Production Power
Get in Touch with Our Experts
People Also Ask
Frequently Asked Questions
The Hydraulic CNC Press Brake Machine uses a dedicated CNC controller with multi‑axis control (including synchronized ram axes and back gauge axis), allowing operators to program complex bend sequences and achieve consistent, accurate bends every time. It also features closed‑loop proportional hydraulics for smooth, synchronized ram movement and precise beam control.
This machine includes a world‑class CNC controller, precise hydraulic proportional valves, zero‑leak‑seal hydraulic cylinders, and a servo‑driven back gauge with hardened ball screws for accurate positioning. These features help maintain stable performance, repeatability, and reduced maintenance needs.
The Hydraulic CNC Press Brake Machine is designed for industrial use with user‑friendly CNC programming, easy‑to‑operate control interfaces, and sturdy construction that supports longer service life and stable performance. Additionally, advanced safety measures such as emergency shut‑off and ergonomic controls help protect operators during use.
