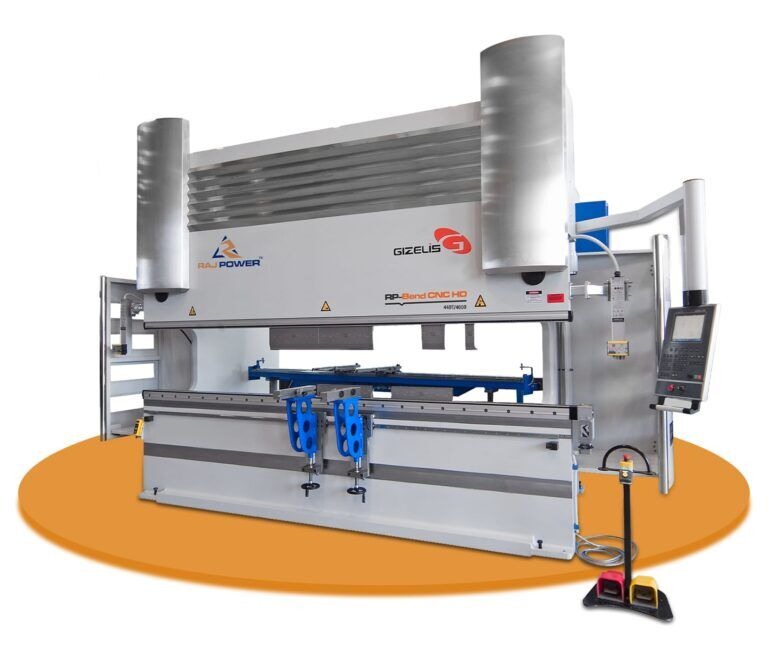

CNC Press Brake (HD Series)
We manufacture high-quality Hydraulic CNC Press Brake HD Series Machines to ensure powerful, precise, and programmable bending performance for demanding industrial applications. With a strong focus on heavy-duty strength, advanced control, and long-lasting durability, our machines deliver smooth operation and exceptional output consistency. Robust engineering and customizable configurations meet the needs of modern fabrication and heavy manufacturing.
India’s Trusted Manufacturer of CNC Press Brake Machines
Industrial Hydraulic CNC Press Brake HD Series for Heavy Production
The Hydraulic CNC Press Brake – HD Series is a heavy-duty, computer-controlled bending machine engineered with advanced hydraulic power and CNC (Computer Numerical Control) technology for high-precision sheet metal bending. Designed for heavier workloads and large-scale production, the HD Series offers precise control over force, angle, and bending sequences. The CNC controller enables operators to program complex bending operations with repeatable accuracy — making this series ideal for heavy fabrication, structural steel work, and high-volume manufacturing.
Speed
High-capacity hydraulic system delivers strong, smooth, and controllable force for heavy-duty bending and forming operations.
Precision
CNC control guarantees repeatable accuracy, precise angle consistency, and enhanced control for complex profiles.
Durability
Heavy-duty construction with reinforced frame and premium hydraulic components ensures long service life even under continuous production stress.
Engineered for Heavy-Duty Accuracy
Hydraulic CNC Press Brake HD Series Design & Components
The Hydraulic CNC Press Brake HD Series machine features a rigid structure, precision control system, and high-quality components that ensure accurate bending, consistent force application, and stable performance in demanding industrial operations.
FRAME CONSTRUCTION
Mechanical C Frame Power Press Machine fabricated from IS-2062 graded rolled steel plates. The frame is deeply reinforced and fines machines after stress relieving. The interlocked design put direct support to the frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.
FLYWHEEL
Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the cutting operations, and properly balanced for smooth running. Lubrication: Single shot lubricator provides oil to all the lubrication points, where necessary. Thus all bearing parts and guide surface etc.
TABLE & SLIDE (RAM)
Table and Slide are made of high grade heavy duty cast iron and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precession press operation.
ROLLING KEY CLUTCH
Made of alloy steel for positive engagement and continues operation heavy three key ways. Single rolling key system is incorporated in the machine ensuring easy and efficient working of the machine.
MAIN AND PINION SHAFT
Shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life and accuracy.
LUBRICATION SYSTEM
Single shot lubrication provides oil to all the lubrication points, where necessary, thus all bearing parts and guide surface, etc.
GEARS
Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing the Power Press machine.
BRAKE SYSTEM
Heavy-duty mechanical brake ensures quick, controlled stopping of the slide for safe and reliable operation.
Compare Capabilities Before You Choose
Technical Specifications of Hydraulic CNC Press Brake (HD Series)
| MODEL NO. | RP-Bend CNC HD 80/2100 | RP-Bend CNC HD 80/2900 | RP-Bend CNC HD 80/3400 | RP-Bend CNC HD 110/3400 | RP-Bend CNC HD 140/3400 | RP-Bend CNC HD 140/4400 | RP-Bend CNC HD 175/3400 | RP-Bend CNC HD 175/4400 | RP-Bend CNC HD 175/6100 | RP-Bend CNC HD 210/3400 | RP-Bend CNC HD 210/4400 | RP-Bend CNC HD 210/6100 | RP-Bend CNC HD 290/3400 | RP-Bend CNC HD 290/4400 | RP-Bend CNC HD 290/6100 |
| Bending Force | 80 | 80 | 80 | 110 | 140 | 140 | 175 | 175 | 175 | 210 | 210 | 210 | 290 | 290 | 290 |
| Working Length | 2100 | 2900 | 3400 | 3400 | 3400 | 4400 | 3400 | 4400 | 6100 | 3400 | 4400 | 6100 | 3400 | 4400 | 6100 |
| Distance Between Uprights | 1550 | 2550 | 3050 | 3050 | 3050 | 4050 | 3050 | 4050 | 5050 | 3050 | 4050 | 5050 | 3050 | 4050 | 5050 |
| Thorat Depth | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Daylight | 515 | 515 | 515 | 515 | 515 | 515 | 515 | 515 | 515 | 515 | 515 | 515 | 515 | 515 | 515 |
| Punch Stroke | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Table Width | 80 | 80 | 80 | 80 | 80 | 80 | 80-220 | 80-220 | 220 | 80-220 | 80-220 | 220 | 80-220 | 220 | 220 |
| Fast Speed | 180 | 180 | 180 | 180 | 180 | 180 | 160 | 160 | 160 | 160 | 160 | 160 | 150 | 150 | 160 |
| Working Speed | 20 | 20 | 20 | 20 | 20 | 15 | 20 | 15 | 10 | 20 | 15 | 10 | 15 | 10 | 10 |
| Upstroke Speed | 160 | 160 | 160 | 160 | 160 | 160 | 140 | 140 | 140 | 130 | 130 | 130 | 120 | 120 | 120 |
| Hydraulic Pressure (Max) | 275 | 275 | 275 | 275 | 275 | 275 | 275 | 275 | 275 | 275 | 275 | 275 | 275 | 275 | 275 |
| Main Electrical Motor | 11 | 11 | 11 | 15 | 15 | 15 | 18.5 | 18.5 | 18.5 | 22 | 22 | 22 | 30 | 30 | 30 |
| Length | 3200 | 3700 | 4400 | 4400 | 4400 | 5400 | 4400 | 5400 | 7400 | 4400 | 5400 | 7400 | 4400 | 5400 | 7400 |
| Width | 1700 | 1700 | 1700 | 1700 | 1700 | 1800 | 1800 | 1800 | 1800 | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 |
| Height | 2950 | 2950 | 2700 | 2750 | 2800 | 3100 | 2950 | 3150 | 3400** | 3000 | 3200 | 3600** | 3100 | 3400 | 3900** |
| Weight (Approx.) | 7300 | 8000 | 8500 | 9500 | 11000 | 13600 | 12500 | 15600 | 23000 | 14500 | 18000 | 24000 | 16200 | 22000 | 28000 |
Higher Output. Stable Operation. Consistent Accuracy.
Key Advantages of Hydraulic CNC Press Brake (HD Series)
Our Hydraulic CNC Press Brake (HD Series) machines combine heavy-duty construction and operator-friendly controls to deliver the precision, durability, and dependable performance required for continuous industrial bending operations.
Heavy-Duty Hydraulic Power
Robust hydraulic system capable of delivering high force for thick sheet metal bending and heavy workloads.
Versatile Fabrication Capability
Suitable for heavy-gauge steel, stainless steel, aluminium, and other metals in demanding industrial applications.
Advanced CNC Programming
Computer control allows programming of multiple bend steps with consistent repeatability and reduced setup time.
Enhanced Production Efficiency
Ideal for high-volume manufacturing, structural fabrications, automotive frames, and industrial components.
Reinforced Frame Stability
Structural design with high rigidity minimizes deflection and ensures precision even under heavy loads.
Durable and Reliable Construction
Built for long life, minimal maintenance, and dependable operation under continuous industrial usage.
Standard Features & Optional Upgrades
Configured to Match Your Production Requirements
Rajesh Hydraulic CNC Press Brake Machines are developed precisely to meet the rigorous requirements of modern industrial fabrication and manufacturing processes. Built with a robust frame, advanced hydraulic system, and high-end CNC controller, these machines provide excellent stability, programmable control, and precise force distribution.
Each machine is designed to ensure steady performance, enhanced safety features, and long-lasting endurance — making it an ideal solution for workshops, fabrication units, and production facilities focused on high-quality output and productivity.
Standard Features with Cybelec Cyb Touch 8 PS Controller
- Cyb Touch 8 PS Controller
- Y1, Y2, Independent Hydraulic Cylinders
- Proportional Valve Technology
- X Axis Back Gauge
- Manual Crowing System
- Mechanical Upper Tool Clamping
- Mechanical Lower Tool Clamping
- 2 Front Gauge Support
- 2 Back Gauge Finger
- Standard Set of Top and Bottom Tools
Standard Features with Cybelec Cyb Touch 12 PS Controller
- Cyb Touch 12 PS Controller
- Y1, Y2, Independent Hydraulic Cylinders
- Proportional Valve Technology
- X – R Two Axis Back Gauge
- Manual Crowing System
- Mechanical Upper Tool Clamping
- Mechanical Lower Tool Clamping
- 2 Front Gauge Support
- 2 Back Gauge Finger
- Standard Set of Top and Bottom Tools
Cybec Touch 8 PS CNC Controller
Easy Operating
- 7″ Color graphic CRT screen, with LED backlight control.
- Intuitive user-friendly interface.
- Simple pages, clear display, large keys.
- Large, vivid, and high-contrast fully touchscreen.
- Complete programming for efficient mass production with multiple bends.
- Easy single bends with EasyBend page.
- On-line help and interactive warning popups.
- Comfortable wireless data backup and software updating using PC or Notebook.
- A large variety of languages is available.
Better Bending
- Various automatic calculations of bend functions. Bending sequences and programs can be memorized.
- Angle, pressure, and crowning management. Easy manual movement.
- Offline 2D software is available.
Powerful
- Control 3 axes (with optional 4th axis) 2D graphic profile creation with manual sequencing (option).
- Bend allowance calculation.
- Pressure-crowning calculation.
- Modular tools for each part or bend.
- Angle and back gauge correction.
- Tele maintenance via wireless connection with PC or notebook.
- USB port for memory stick for data transfer/backup.
Easy Operating
- 7″ Color graphic CRT screen, with LED backlight control.
- Large, vivid and high-contrast fully touchscreen.
- Simple pages, clear display, large keys.
- Intuitive user-friendly interface.
- Complete programming for efficient mass-production with multiple bends.
- Easy single bends with EasyBend page.
- On-line help and interactive warning popups.
- Comfortable wireless data backup and software updating using PC or Notebook.
- Large variety of languages available.
Better Bending
- Various automatic calculations of bend functions.
- Bending sequences and programs can be memorized.
- Angle, pressure and crowning management. Easy manual movement.
- Offline 2D software available
Powerful
- Control 4 Axis.
- Automatic bend sequencing (option).
- Bend allowance calculation.
- Pressure – crowning calculation.
- Modular tools for each part or bend.
- Angle and back gauge correction.
- Tele maintenance via wireless connection with PC or notebook.
- USB port for memory stick for data transfer/backup.
Cybec Touch 12 PS CNC Controller
Tooling Drawing CNC
From Light-Duty to Heavy-Duty Applications
C-Frame Power Press Machines by Tonnage Capacity
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
Quality Assurance Through
Our Certificates
Why Choose Rajesh Hydraulic CNC Press Brake (HD Series)
Rajesh Hydraulic CNC Press Brake (HD Series) machines deliver dependable bending performance for thick plates, long sheets, and demanding fabrication work. The reinforced frame design ensures excellent structural stability, accurate ram movement, and uniform force distribution, making these machines ideal for high-capacity production environments and precision metalworking operations.
Each machine is manufactured using high-grade steel and carefully matched hydraulic and CNC components to ensure durability, rigidity, and long service life. The solid construction minimizes deflection, maintains bending accuracy, and reduces maintenance requirements, even under heavy-duty industrial workloads.
Rajesh Hydraulic CNC Press Brake (HD Series) machines are built to match diverse production requirements with configurable bending capacity, programmable controls, safety systems, and automation-ready options. Supported by dependable service assistance and genuine spare parts, these machines help maintain productivity, operational safety, and consistent results for years of continuous use.
Let’s Build Your Production Power
Get in Touch with Our Experts
People Also Ask
Frequently Asked Questions
The HD Series press brake comes with two optional Cybelec controllers — the Cyb Touch 8 PS and the Cyb Touch 12 PS. Both offer intuitive touchscreen interfaces, programmable bending sequences, and memory for repetitive jobs. The Cyb Touch 12 PS adds 4‑axis control and automatic bend sequencing, making it more suitable for advanced and complex bending operations.
This hydraulic CNC press brake uses independent hydraulic cylinders (Y1 & Y2) with proportional valve technology for synchronized ram movement and accurate bending. It also includes a back gauge system (standard X axis or optional X‑R two‑axis) to precisely position the sheet metal before bending.
The HD Series includes a standard set of top and bottom tools, along with front gauge supports and back gauge fingers to help stabilize and align workpieces. Mechanical tool clamping on both the upper and lower sections ensures fast and secure tooling changes.
