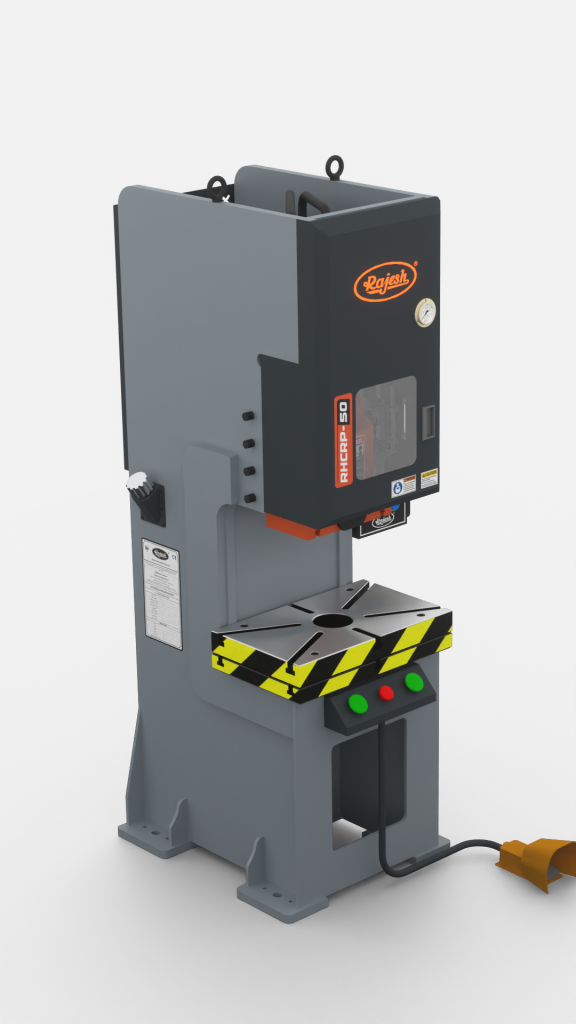

C Type Hydraulic Power Press(Ram Type)
We manufacture high-quality C-Type Hydraulic Press (Ram Type) Machines to ensure precise pressing, bending, forming, and assembly operations with superior control and performance. With a strong focus on power, accuracy, and durability, our machines deliver smooth operation and consistent output. Robust engineering and customizable configurations meet the demands of modern workshops and industrial applications.
India’s Trusted Manufacturer of Hydraulic Press Machines
Industrial C-Type Hydraulic Press (Ram Type) for Modern Production
A C-Type Hydraulic Press is a hydraulic press machine designed with an open-front “C” shaped frame that provides excellent accessibility to the work area. It delivers controlled hydraulic force for applications such as pressing, straightening, bending, embossing, and general metal forming tasks. The C-type design allows operators to position and align workpieces easily, making it well-suited for light to heavy-duty workshop and production use.
Speed
High-efficiency hydraulic system delivers strong, smooth, and controllable pressing force for reliable and repeatable performance.
Precision
Advanced pressure regulation and optimized ram guidance ensure accurate force application and consistent results.
Durability
Heavy-duty frame construction and premium hydraulic components ensure long service life and dependable operation under continuous use.
Engineered for Precision, Strength & Reliability
C-Type Hydraulic Press Structure & Features
Explore the construction, hydraulic system, and advanced components that make the C-Type Hydraulic Press a dependable solution for accurate pressing, forming, and industrial production tasks.
FRAME CONSTRUCTION
Frame is fabricated from IS-2062 graded rolled steel plates table and cutting beam deeply reinforced and fines machines after stress relieving. The interlocked design put the direct support to the frame. These frames are strain-free and eliminate welds at load supports. Thus the accuracy of the machine is never disturbed.
HYDRAULIC SYSTEM
The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates. Pressure relief value is provided to safe guard the system and Machine from overload. The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.
TABLE & SLIDE (RAM)
Table and Slide are made of high grade heavy duty cast iron / steel fabricated and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precession press operation.
ELECTRICAL CONTROL PANEL
The electric control panel is located on the left hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if needed to be replaced. It is wired cleanly and labelled/ferruled properly as per the international practices to help easily locate any fault and replace components conveniently..
CYLINDER
The cylinder bodies are precisely made from forged steel material duly bored and fine honed for long sealing life. The piston rods are made From EN – 8 material having low carbon contents. The piston rod is hard chrome platted (0.200 micron).
Evaluate Machine Capability Before You Decide
Technical Specifications of C-Type Hydraulic Press (Ram Type)
| MODEL NO. | RHCRP - 3 | RHCRP - 5 | RHCRP - 10 | RHCRP - 20 | RHCRP - 30 | RHCRP - 50 | RHCRP - 60 | RHCRP - 80 | RHCRP - 100 | RHCRP - 150 | RHCRP - 200 | RHCRP - 250 |
| Machine Capacity | 3 Ton | 5 Ton | 10 Ton | 20 Ton | 30 Ton | 50 Ton | 60 Ton | 80 Ton | 100 Ton | 150 Ton | 200 Ton | 250 Ton |
| Table Size (Bed Size) | 250 x 150 | 300 x 175 | 400 x 250 | 500 x 300 | 550 x 350 | 650 x 400 | 700 x 450 | 750 x 500 | 800 x 550 | 900 x 600 | 950 x 650 | 1000 x 700 |
| Hole in Ram | 19 | 25 | 25 | 32 | 38 | 44 | 44 | 51 | 51 | 57 | 57 | 63 |
| Hole in Bed | 50 | 60 | 75 | 80 | 90 | 125 | 150 | 175 | 200 | 200 | 200 | 250 |
| Rod Size | 35 | 35 | 50 | 70 | 80 | 100 | 100 | 120 | 140 | 160 | 160 | 180 |
| Stroke Length | 60 | 60 | 80 | 100 | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 175 |
| Daylight Gap | 150 | 150 | 200 | 250 | 280 | 325 | 350 | 400 | 400 | 400 | 450 | 500 |
| Working Height | 600 | 620 | 725 | 800 | 850 | 850 | 850 | 900 | 900 | 925 | 950 | 950 |
| Distance Between Ram to Bed | 153 | 153 | 204 | 254 | 280 | 332 | 357 | 381 | 406 | 410 | 432 | 485 |
| Travel of Ram | 50 | 50 | 60 | 70 | 80 | 100 | 100 | 125 | 125 | 150 | 150 | 150 |
| Piston Diameter | 40 | 40 | 50 | 65 | 70 | 100 | 120 | 130 | 150 | 170 | 180 | 200 |
| Throat Depth | 75 | 88 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 |
| Oil Tank Capacity (Ltr.) | 30 | 30 | 40 | 120 | 120 | 175 | 200 | 250 | 300 | 300 | 350 | 400 |
| Motor Power (HP) | 1 | 1 | 2 | 3 | 3 | 5 | 5 | 7.5 | 10 | 10 | 15 | 20 |
Higher Efficiency. Smoother Operation. Greater Output.
Key Benefits of C-Type Hydraulic Press (Ram Type)
Our C-Type Hydraulic Press (Ram Type) is engineered with a rigid frame, precision hydraulic system, and durable components to ensure consistent performance, reduced maintenance needs, and dependable productivity for demanding industrial applications.
Easy Accessibility for Workpieces
The open-front C-frame design allows operators to load and position workpieces quickly and comfortably for pressing and forming tasks.
Versatile Workshop Performance
Suitable for a wide range of applications in automotive, fabrication, maintenance, and heavy-duty workshop environments.
Smooth and Consistent Hydraulic Force
Hydraulic pressure delivers controlled and gradual force build-up, making operations like bending, pressing, and forming safer and more accurate.
Manual and Motorized Pump Options
Operators can choose between hand pump for simple tasks or motorized hydraulic action for faster repetitive operations.
Adjustable Work Height
The multi-position bed/table can be adjusted based on the size of workpieces — ideal for small parts as well as larger components.
High Precision Pressing & Forming
Provides excellent control for fitting bushes, bearings, gears, pins, and other mechanical components without causing damage.
Standard Features & Optional Upgrades
Configured to Match Your Production Requirements
Rajesh C-Type Hydraulic Press (Ram Type) Machines are developed precisely to meet the rigorous requirements of modern workshops and industrial manufacturing processes. Built with a rigid C-frame and efficient hydraulic system, these machines provide excellent stability, easy material positioning, and precise force control.
Each machine is carefully designed to ensure steady performance, enhanced safety features, and long-lasting endurance — making it an ideal solution for workshops, fabrication units, and production facilities focused on productivity, reliability, and quality output.
Standard Equipment
- Variable Stroke Adjustment With Limit Switch.
- Front Operator Control Box.
- Movable Foot Switch.
- Digital Stroke Counter.
- Operation & Maintenance Manual.
Optional Equipment
- PLC System With HMI
- Die Clamping.
- Die Cushion
- Safety Grill
- Photo Safety Curtain
From Light-Duty to Heavy-Duty Applications
C-Frame Power Press Machines by Tonnage Capacity
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
rcp10
Learn More →
Quality Assurance Through
Our Certificates
Why Choose Rajesh Power Press C-Type Hydraulic Press Machines
Rajesh C-Type Hydraulic Press (Ram Type) Machines deliver dependable performance for pressing, forming, straightening, assembling, and bending operations. The C-frame structure ensures excellent accessibility, accurate alignment, and smooth hydraulic movement, making these presses ideal for modern workshops and high-precision production environments.
Each machine is manufactured using premium-grade steel and precision-machined components to guarantee durability, rigidity, and long operational life. The solid frame design minimizes vibration, maintains pressing accuracy, and reduces wear, helping industries achieve consistent results even during heavy-duty applications.
Rajesh C-Type Hydraulic Press (Ram Type) Machines can be tailored to match specific production requirements, including adjustable pressure capacity, stroke length, control options, and safety systems. Supported by prompt service assistance and genuine spare parts, these presses help businesses maintain productivity, operational safety, and reliable performance for years.
Let’s Build Your Production Power
Get in Touch with Our Experts
People Also Ask
Frequently Asked Questions
A C-Type Hydraulic Press (Ram Type) is commonly used for pressing, forming, punching, straightening, bending, and assembly applications. Its open-front design allows easy loading and unloading of workpieces, making it suitable for precision manufacturing tasks.
The C-frame structure provides excellent accessibility, accurate ram alignment, and efficient workspace visibility. This design is ideal for operations that require quick handling, precision positioning, and consistent production output.
The required tonnage depends on material type, thickness, and operation type. Light forming jobs may need lower capacity, while heavy pressing or metal forming requires higher tonnage. Consulting experts like Rajesh Power Press helps ensure proper selection.
Yes. C-Type Hydraulic Press Machines (Ram Type) can be customized with different stroke lengths, pressure settings, control systems, safety guards, and automation features to match production requirements.
Routine maintenance includes checking hydraulic oil levels, inspecting seals, monitoring pressure performance, and ensuring all moving parts remain lubricated. Proper maintenance improves machine lifespan and prevents unexpected downtime.
Yes. With a rigid frame, high-quality hydraulic components, and durable construction, these presses are designed to handle continuous operation in demanding industrial environments while maintaining accuracy and efficiency.
